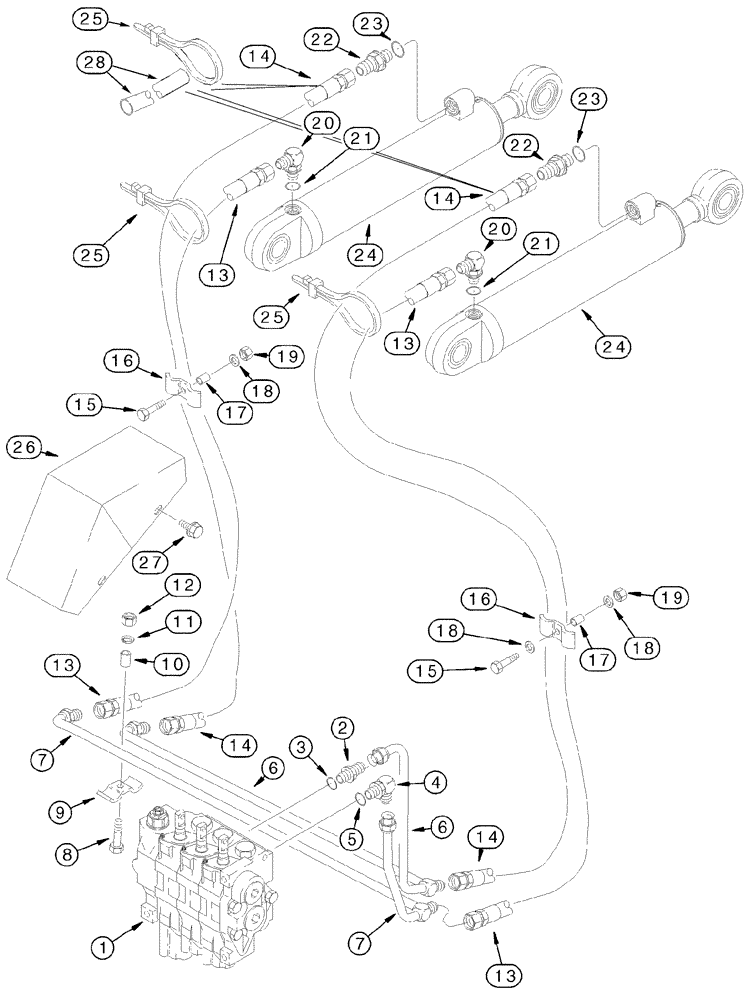

Запчасти Case 850H (08-06) - HYDRAULICS - LIFT CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control, See figures 8-19 - 8-20

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes: 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

120135A1

TUBE,15.875 mm OD, 336, 135 mm Length

Upper Port Of Control Valve

1шт.

7

120137A1

TUBE

Lower Port Of Control Valve

1шт.

8

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

9

D138055

CLAMP

2шт.

10

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

123062A1

HYDRAULIC HOSE

725 mm (28-1/2 inch), Closed End

2шт.

14

123061A1

HYDRAULIC HOSE

1250 mm (49-1/4 inch), Rod End

2шт.

15

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

16

R15257

CLAMP

2шт.

17

D76208

SPACER

2шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

19

231-1446

NUT,3/8" - 16, Gr 5

2шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes: 23

2шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

116211A2

CYLINDER

89 ID x 442mm strk, Lift, See figure 8-12

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

26

124642A1

COVER

2шт.

27

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

4шт.

28

D134729

SLEEVE

2шт.
