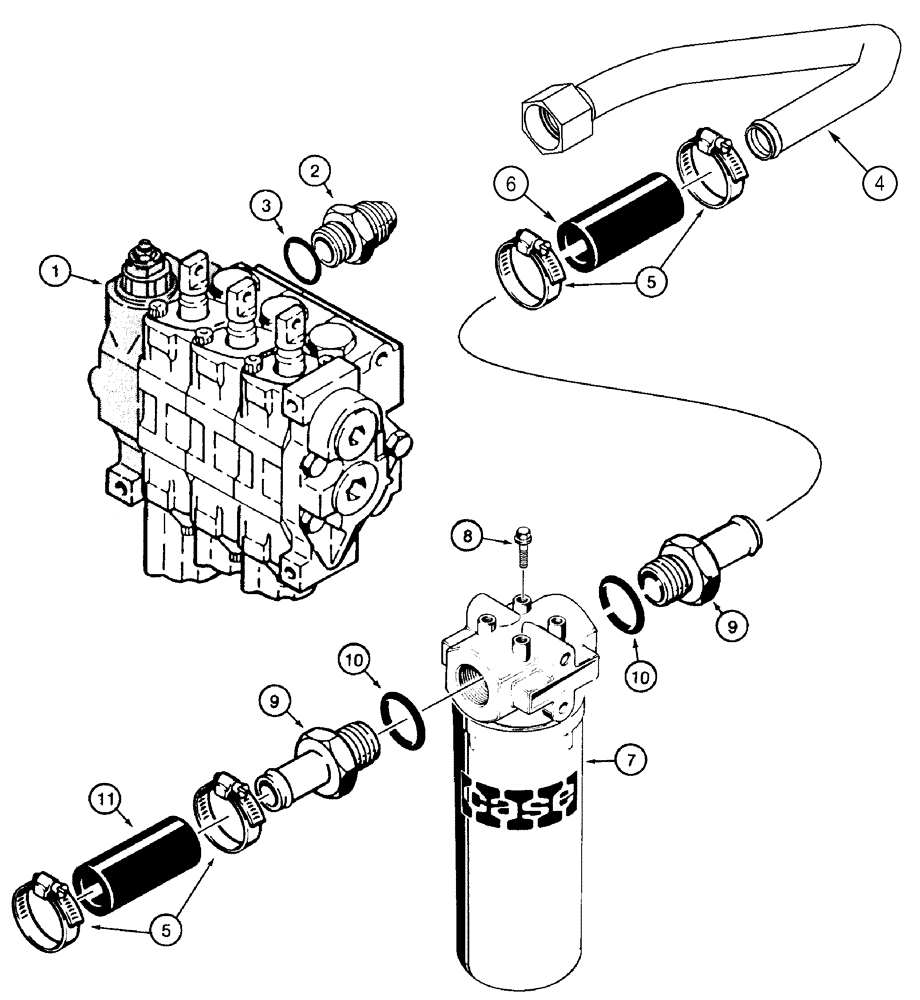

Запчасти Case 850H (08-04) - HYDRAULICS - EQUIPMENT, CONTROL VALVE TO HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control, See figures 8-19 - 8-20

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

336741A1

HYD TUBE

Return

1шт.

5

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

1 - 1-7/8

4шт.

6

R13912

HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3

Cut From : S118383X

1шт.

7

R48993

FILTER

See figure 6-19

1шт.

8

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

4шт.

9

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Includes 10

2шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

89 mm (3-5/8 in), Cut From: S118383X

1шт.
