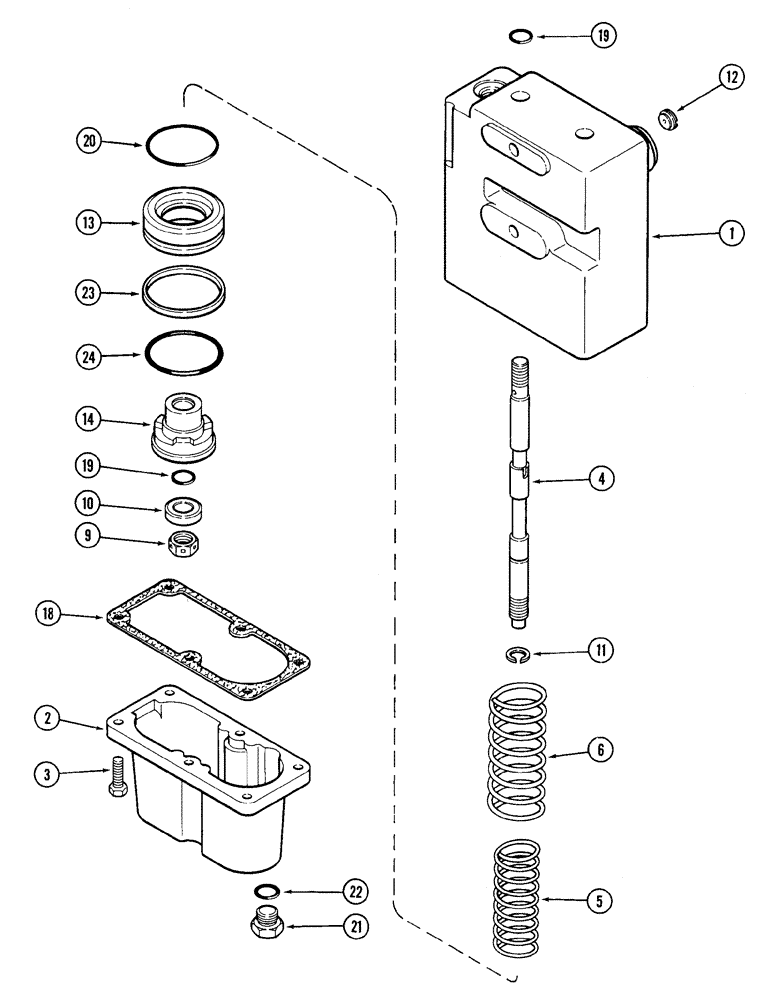

Запчасти Case 850H (07-04) - VALVE ASSY - BRAKE (07) - BRAKES

1272218C1

VALVE

Consists of: 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

384495R1

CAP

1шт.

3

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8

6шт.

4

NSS

NOT SOLD SEPARAT

Spool

2шт.

5

1263125C1

SPRING

Small

2шт.

6

1263124C1

SPRING

Large

2шт.

9

9411648

LOCK NUT,1/2"-20, GC

2шт.

10

69158C1

WASHER,12.78mm ID x 25.4mm OD x 6.35mm Thk

2шт.

11

A27020

RING

2шт.

12

140720C1

PLATE

1шт.

13

NSS

NOT SOLD SEPARAT

Piston, Large

2шт.

14

NSS

NOT SOLD SEPARAT

Piston, Small

2шт.

71487C92

GASKET KIT

Inc. 18 - 24

1шт.

18

384503R2

GASKET,0.38mm Thk

housing

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, Spool

4шт.

20

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

21

76349

PLUG,9/16" - 18 ORB

Incl. 22

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Slip

2шт.

24

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2-1/16 ID x 3/32

2шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
