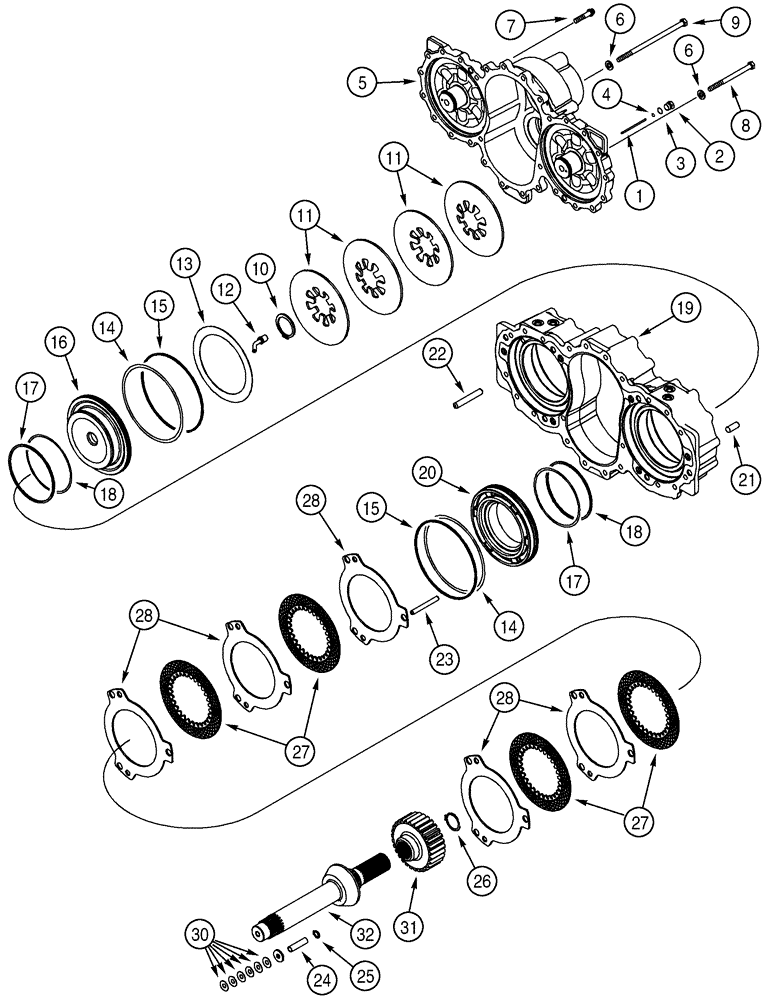

Запчасти Case 850H (07-03) - BRAKES - TRANSMISSION (07) - BRAKES

REF

INSTRUCTION

Transmission, Includes: 1 - 32, For Complete Assembly, See figure 6-04 - 6-14

1шт.

1

1997011C4

PIN

Brake Wear

2шт.

2

1997050C3

PLUG

Special

2шт.

3

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

2шт.

4

100-2531

SNAP RING,0.312", Int, #31

2шт.

5

322005A3

COVER

Housing, Brake and Range, Use Sealant, No. 515

1шт.

B17555

LOCTITE

No. 515, 50 ml

1шт.

6

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

28шт.

7

868-10045

12 PT SCREW,M10 x 45mm, Cl 12.9

6шт.

8

608-10130

BOLT,Hex, M10 x 130mm, Cl 10.9

20шт.

9

608-10210

BOLT,Hex, M10 x 210mm, Cl 10.9

2шт.

10

100-16193

SNAP RING,#193, Ext

2шт.

11

1348986C1

SPRING

8шт.

12

1997079C1

TUBE,7.94 mm OD

Lubrication

2шт.

13

1348999C1

SPRING WASHER,146.8mm ID x 187mm OD x 1.05mm Thk

2шт.

14

1348992C1

SEAL

4шт.

15

238-7167

O-RING,0.103" Thk x 6.987" ID, -167, Cl 7, 75 Duro

4шт.

16

1348971C2

PISTON

Brake

2шт.

17

1348903C1

SEAL

4шт.

18

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

4шт.

19

315952A4

HOUSING

Brake and Range, Use Sealant, No. 515

1шт.

B17555

LOCTITE

No. 515, 50 ml

1шт.

20

1348972C2

PISTON

2шт.

21

37-1820

DOWEL,1/2" x 1 1/4"

2шт.

22

37-1852

DOWEL,3/4" x 3 1/4"

4шт.

23

37-1652

DOWEL,3/8" x 3 1/4"

6шт.

24

1348983C1

TUBE,9.83 mm ID, 12.7 mm OD, 50 mm Length

Self Adjuster

6шт.

25

100-1450

SNAP RING,#50, Ext

12шт.

26

800-1140

SNAP RING,M40, Ext

2шт.

27

G102354

PLATE

8шт.

28

1348965C3

LARGE PLATE

PLATE, LARGE

10шт.

29

396-41041

WASHER,13/32" x 1 1/8" x .134", HDN

6шт.

30

1348985C1

SPRING

36шт.

31

1348981C1

HUB

Brake

2шт.

32

REF

INSTRUCTION

Shaft, Pinion, See figure 6-04

2шт.
