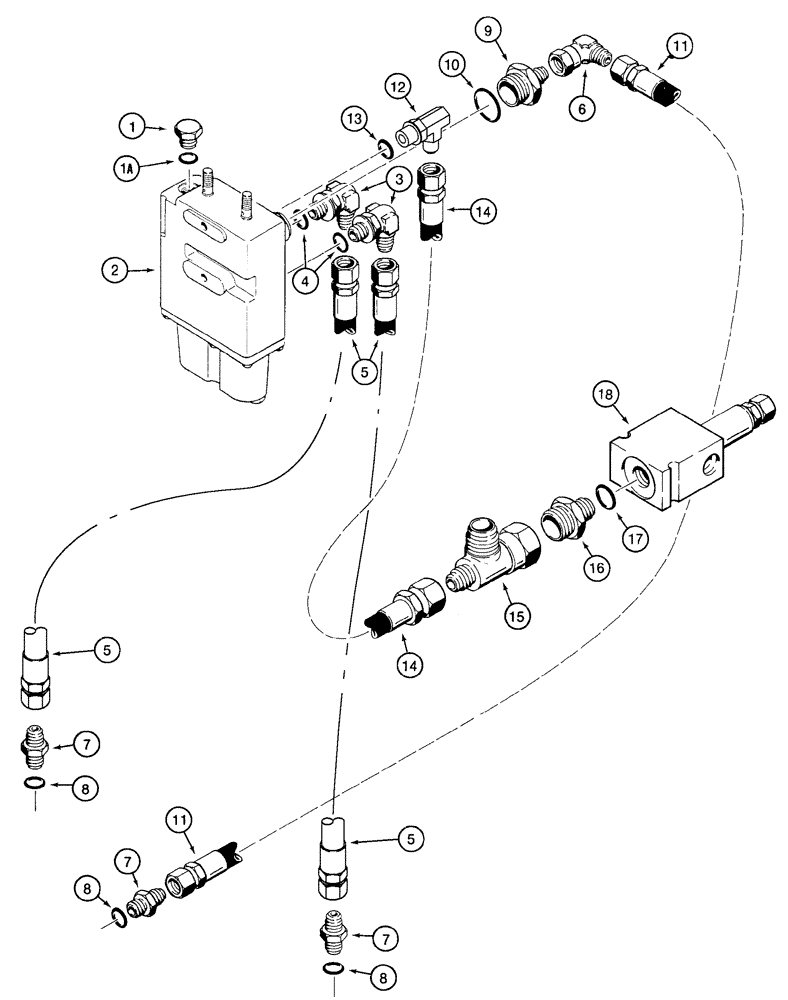

Запчасти Case 850H (07-02) - BRAKE - HYDRAULIC LINES, VALVE TO TRANSMISSION (07) - BRAKES

1

76349

PLUG,9/16" - 18 ORB

Incl. 1A

1шт.

2

1272218C1

VALVE

See figure 7-04

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 4

2шт.

5

320987A1

HOSE ASSY.

1341 mm (52-7/8 inch)

2шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 8

1шт.

9

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

9/16 fl x 1-1/16 Or, Includes: 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

320997A1

HOSE ASSY.

1629 mm (64-1/8 inch), Return

1шт.

12

362641A1

FITTING

Includes: 13

1шт.

14

R58726

HOSE

1041 mm (41 inch)

1шт.

15

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1шт.

16

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Includes 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

R57582

VALVE

See figure 6-16

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

If Equipped, Incl. 21

2шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
