Запчасти Case 850H (06-19) - FILTER ASSY, OIL - VALVE, COOLER BYPASS VALVE, TRANSMISSION OIL FILTER, SUCTION LINE FILTER (06) - POWER TRAIN

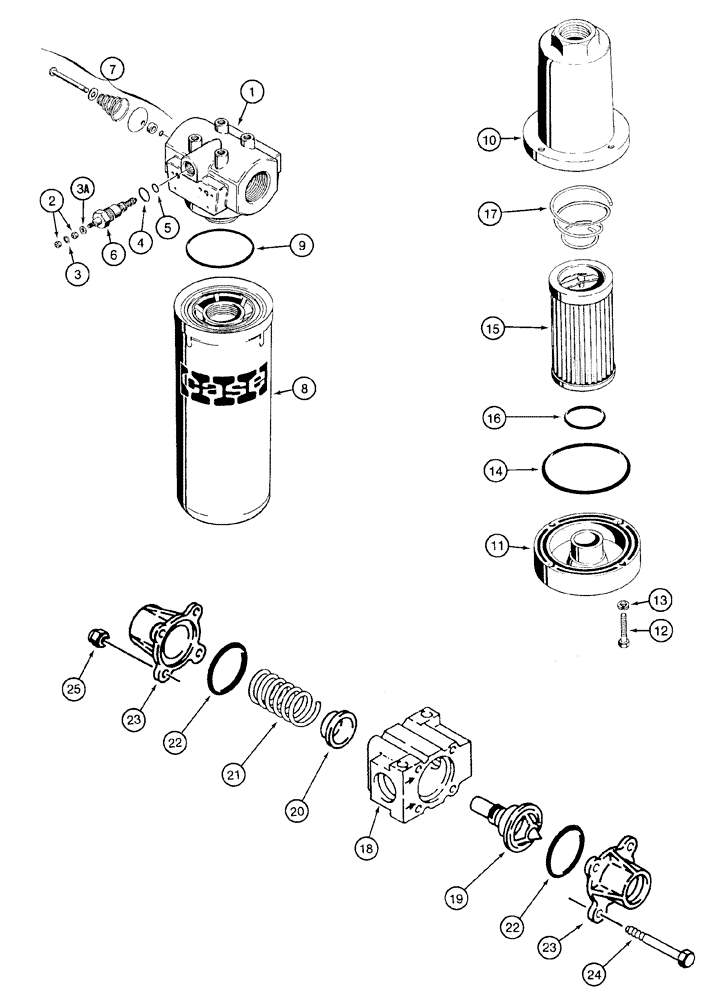

Схема запчастей Case 850H - (06-19) - FILTER ASSY, OIL - VALVE, COOLER BYPASS VALVE, TRANSMISSION OIL FILTER, SUCTION LINE FILTER (06) - POWER TRAIN
17
24
2
3
12
4
3a
15
25
1
18
22
21
10
16
14
19
11
6
13
22
5
20
23
7
8
23
9

Артикул

Название

Примечание

Количество

R48993

FILTER

Consists of: 1 - 9, transmission oil, hydraulic oil

2шт.

1

NSS

NOT SOLD SEPARAT

Head, transmission oil filter, hydraulic oil filter

1шт.

N7929

INDICATOR

Consists of: 2 - 6, transmission oil filter, hydraulic oil filter

1шт.

2

129-667

NUT,#10-32, LH

Transmission oil filter, Hydraulic oil filter

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16"), Transmission oil filter, hydraulic oil filter

1шт.

3a

NSS

NOT SOLD SEPARAT

Washer, transmission oil filter, hydraulic oil filter

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Transmission oil filter, hydraulic oil filter

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

Transmission oil filter, Hydraulic oil filter

1шт.

6

NSS

NOT SOLD SEPARAT

Indicator, transmission oil filter, hydraulic oil filter

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, By-Pass, transmission oil filter, hydraulic oil filter

1шт.

1346028C1

HYDRAULIC OIL FILTER

Consists of: 8, 9, transmission oil filter, hydraulic oil filter

1шт.

8

NSS

NOT SOLD SEPARAT

Element, transmission oil filter, hydraulic oil filter

1шт.

9

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

transmission oil filter, hydraulic oil filter

1шт.

D35144

FILTER

FILTER, OIL , Consists of: 10 - 17, transmission suction line

1шт.

10

D37033

HOUSING

transmission suction line filter

1шт.

11

D37034

HEAD

transmission suction line filter

1шт.

12

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Transmission suction line filter

4шт.

13

492-11025

LOCK WASHER,1/4"

Transmission suction line filter

4шт.

14

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

transmission suction line filter

1шт.

15

D37035

FILTER, ELEMENT

ELEMENT, FILTER , Includes: 16, transmission suction line filter

1шт.

16

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Transmission suction line filter

1шт.

17

D37036

SPRING

transmission suction line filter

1шт.

R51141

THERMOSTAT

Consists Of 18 - 25, cooler

1шт.

18

NSS

NOT SOLD SEPARAT

Body, cooler by-pass valve

1шт.

19

N9802

THERMOSTAT

cooler by-pass valve

1шт.

20

A48899

SEAL

cooler by-pass valve

1шт.

21

N9804

SPRING

cooler by-pass valve

1шт.

22

238-5034

O-RING,0.07" Thk x 2.114" ID, -34, Cl 5, 75 Duro

Cooler by-pass valve

2шт.

23

NSS

NOT SOLD SEPARAT

Cap, cooler by-pass valve

2шт.

24

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

Cooler by-pass valve

4шт.

25

131-461

LOCK NUT,1/4"-20

Cooler by-pass valve

4шт.

Выбрано товаров: 31
