Запчасти Case 850H (06-17) - HYDRAULICS - CRAWLER CIRCUIT, TRANSMISSION SUCTION LINE (06) - POWER TRAIN

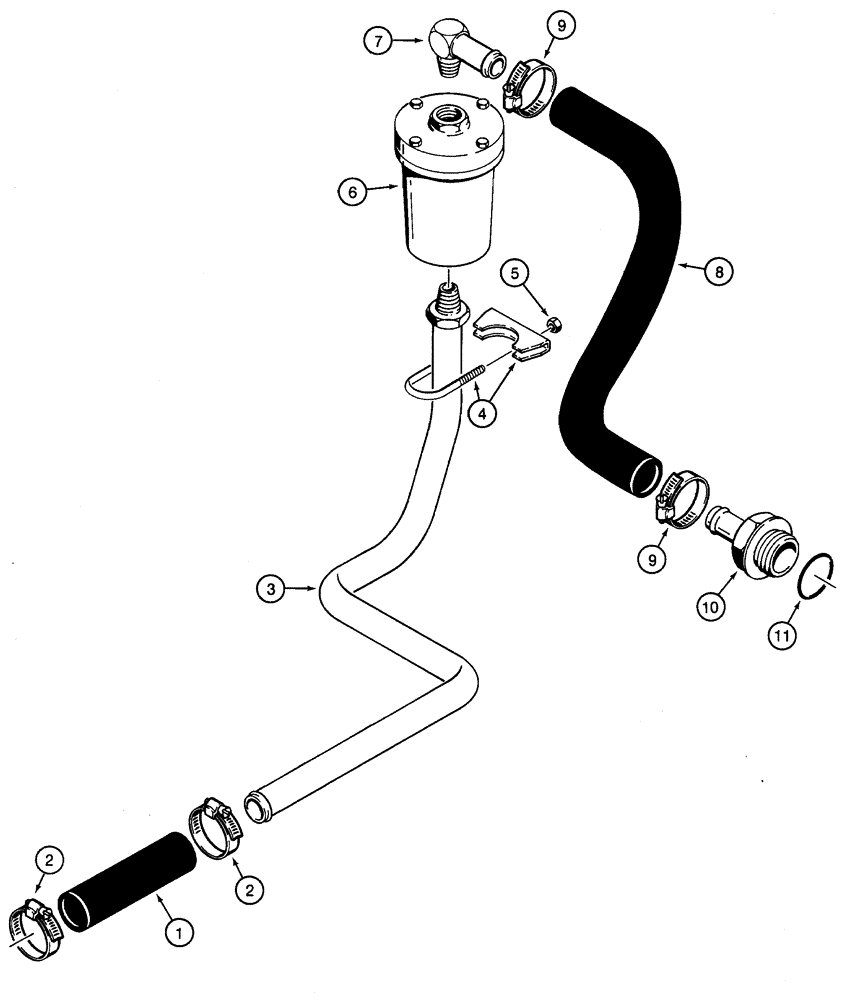

Схема запчастей Case 850H - (06-17) - HYDRAULICS - CRAWLER CIRCUIT, TRANSMISSION SUCTION LINE (06) - POWER TRAIN
2
4
1
5
3
2
8
9
9
7
10
6
11

Артикул

Название

Примечание

Количество

1

R46690

153 mm (6 inch), Transmission to Suction Filter, Cut From S118465X

1шт.

2

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2шт.

3

363286A1

TUBE

1шт.

4

L45901

CLAMP

1шт.

5

230-4115

LOCK NUT,5/16"-18, GA

5/16

2шт.

6

D35144

FILTER

FILTER, OIL , See figure 6-19

1шт.

7

R57811

FITTING

1шт.

8

R58743

HOSE,25.40 mm ID x 510.00 mm, SAE 100R3

Suction Filter to Torque Converter

1шт.

9

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

1 - 1-7/8

2шт.

10

R57462

ADAPTER

Includes: 11

1шт.

11

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

Выбрано товаров: 11
