Запчасти Case 850H (06-16) - HYDRAULICS - CRAWLER CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (06) - POWER TRAIN

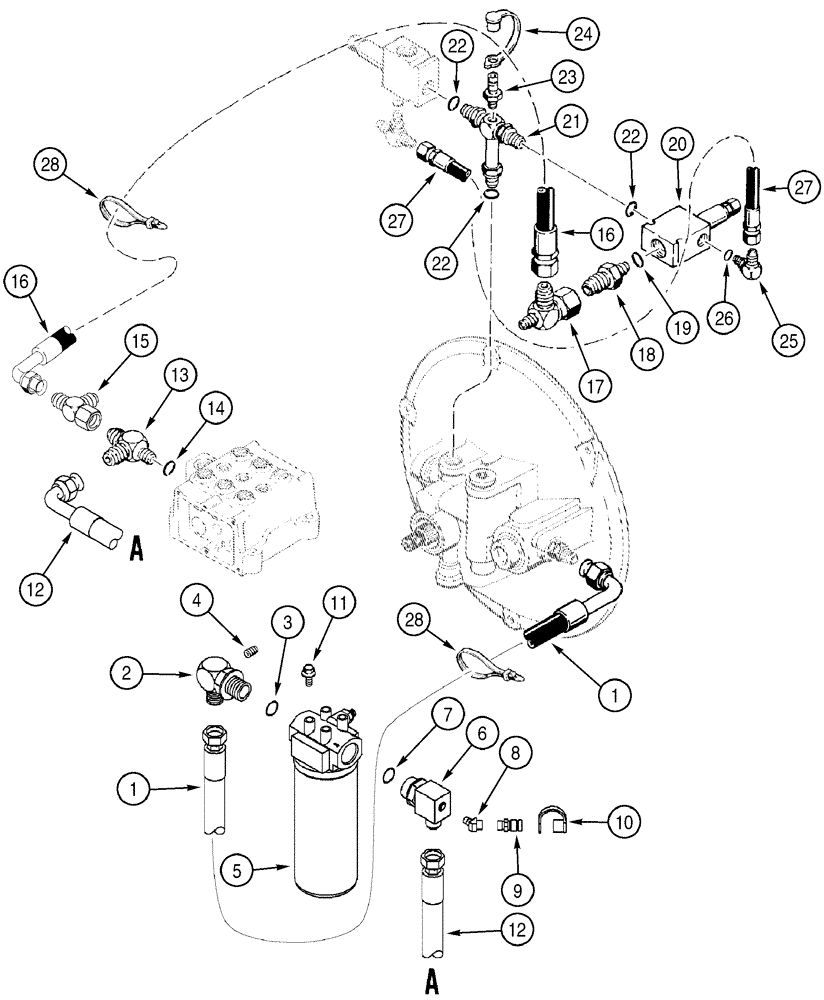

Схема запчастей Case 850H - (06-16) - HYDRAULICS - CRAWLER CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (06) - POWER TRAIN
16
10
17
22
23
27
16
26
28
1
9
28
14
12
1
11
25
6
4
8
21
22
2
27
24
15
5
20
13
7
3
19
12
18
22

Артикул

Название

Примечание

Количество

1

R56466

HOSE ASSY.

1481 mm (58-5/16 inch)

1шт.

2

R49557

FITTING

Includes: 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

1/8 PT

1шт.

5

R48993

FILTER

Transmission Oil, See figure 6-19

1шт.

6

364562A1

ELBOW

Includes 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

9

H434164

COUPLING

Diagnostic

1шт.

10

H434163

DUST CAP

1шт.

11

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

4шт.

12

364352A1

HOSE

1245 mm (49 inch), Filter to Transmission Control Valve

1шт.

13

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

Includes 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

218-5219

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

1шт.

16

364599A1

HOSE ASSY.

1270 mm (50 inch), Transmission Control Valve to Relief Valve

1шт.

17

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1шт.

18

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Includes 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

R57582

VALVE

Includes: 21

1шт.

20a

S301087

SEAL KIT

External, Not Illustrated

1шт.

21

R57585

FITTING

Includes 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

23

H434164

COUPLING

Diagnostic

1шт.

24

H434163

DUST CAP

1шт.

25

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 26

1шт.

27

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

476 mm (18-3/4 inch)

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 29
