Запчасти Case 850H (06-13) - TRANSMISSION VALVE, CONTROL (06) - POWER TRAIN

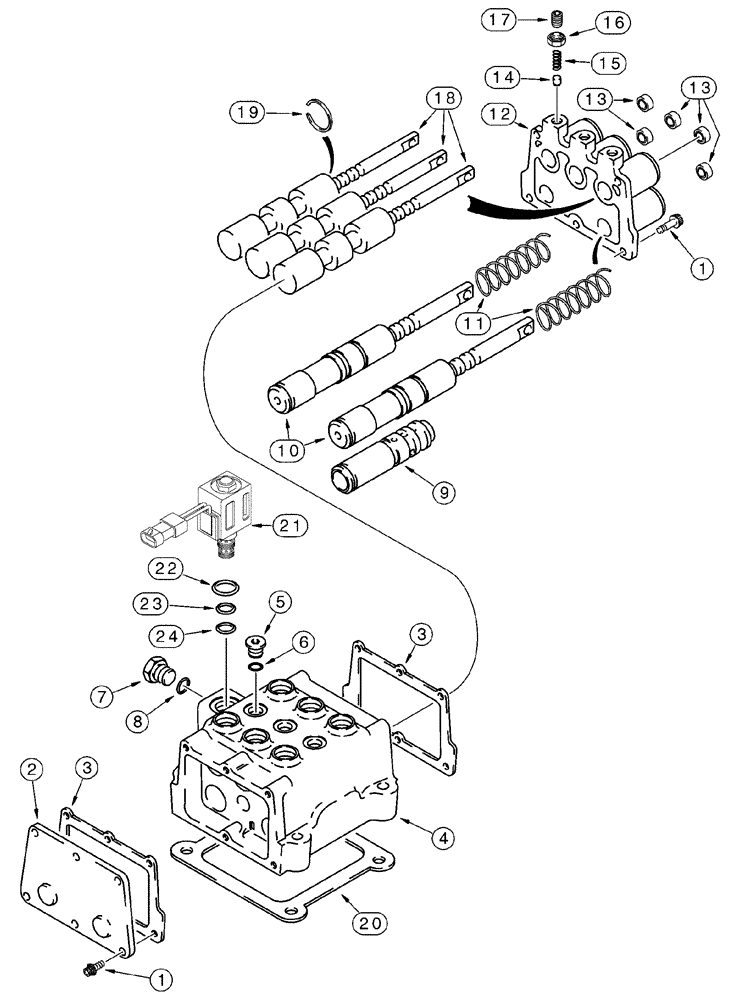

Схема запчастей Case 850H - (06-13) - TRANSMISSION VALVE, CONTROL (06) - POWER TRAIN
8
11
23
4
22
19
7
3
15
18
13
13
16
10
24
9
1
2
21
20
12
5
17
1
14
6
3

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Transmission, Includes: 1 - 24, For Complete Assembly, See figures 6-04 - 6-14, 7-03

1шт.

125588A4

VALVE

Consists of: 1 - 24

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

1/4 NF x 5/8, With Lock Washer

11шт.

2

R21384

COVER

Rear

1шт.

3

35665

GASKET

2шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

278548

PLUG,Hex, 7/16"-20 ORB

Incl 6

3шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 8

3шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

9

126430A3

SPOOL

Forward/Reverse Modulation, See figure 6-14

1шт.

10

189265A2

SPOOL

Clutch Cutout, See figure 6-14

2шт.

11

121865A1

SPRING

2шт.

1542672C1

COVER

Front, Consists of: 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Cover

1шт.

13

G105700

OIL SEAL

5шт.

14

71120

VALVE

3шт.

15

1542824C1

SPRING

3шт.

16

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

17

G104208

SET SCREW

3/8 x 1/2, Sealant Coated

3шт.

18

G107659

ROD

Shift Control, Includes: 19

3шт.

19

G107637

RING, SNAP

RING SNAP

1шт.

20

1986527C1

GASKET

Control Valve Base

1шт.

349296A1

CARTRIDGE

12 V, Brake, Consists of: 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

12 V, Valve, Solenoid

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

24

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

Выбрано товаров: 28
