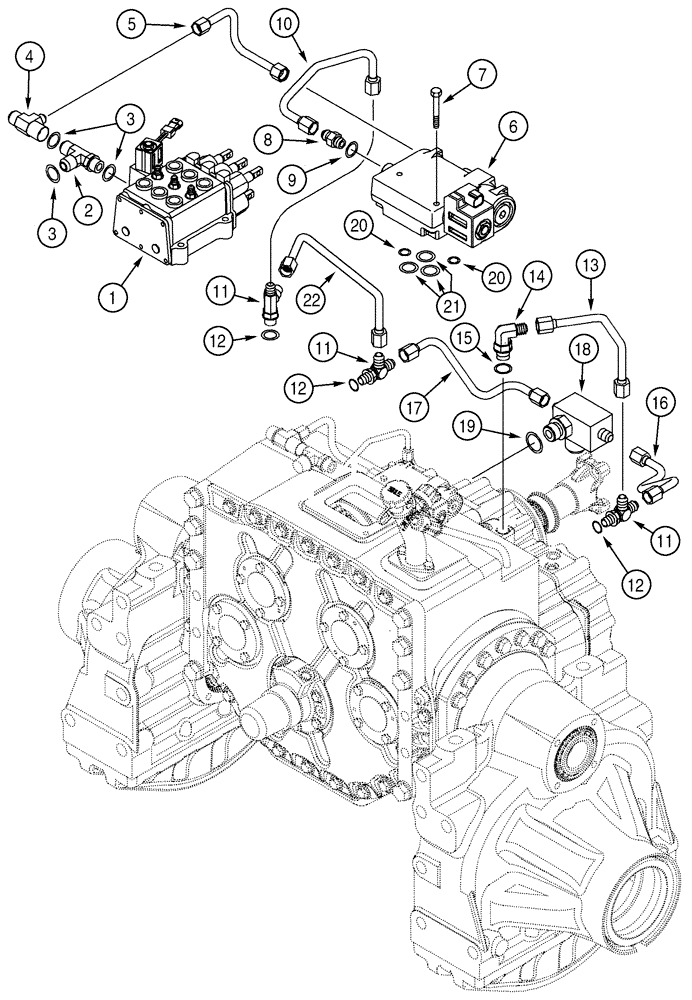

Запчасти Case 850H (06-12) - TRANSMISSION - HYDRAULIC LINES, LUBRICATION TUBING (06) - POWER TRAIN

REF

INSTRUCTION

Transmission, Includes 1 - 48, For Complete Assembly, See figures 6-04 - 6-14, 7-03

1шт.

1

125588A4

VALVE

See figure 6-13

1шт.

2

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

Includes: 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5219

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

1шт.

5

353401A3

TUBE

Inlet, Control Valve, High/Low Range

1шт.

6

329902A3

VALVE

High/Low Range, See figure 6-15

1шт.

7

828-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 10.9

3шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 9

1шт.

10

353403A3

TUBE

Lubrication

1шт.

11

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: 12

2шт.

13

360380A1

TUBE,9.52 mm OD, 143.7, 122.4 mm Length

Right Hand, Track Lube

1шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 37

1шт.

16

353413A1

TUBE,9.52 mm OD, 131.5, 108.5 mm Length

Right Hand, Lubrication, Brake

1шт.

17

353415A1

TUBE,9.52 mm OD, 131.5, 108.5 mm Length

Left Hand, Lubrication, Brake

1шт.

18

1997012C1

TEE

Includes 19, See figure 6-73, Attaches To REF 25

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

21

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

3шт.

22

360378A1

TUBE,9.52 mm OD, 143.7, 122.4 mm Length

Left Hand, Track Lube

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
