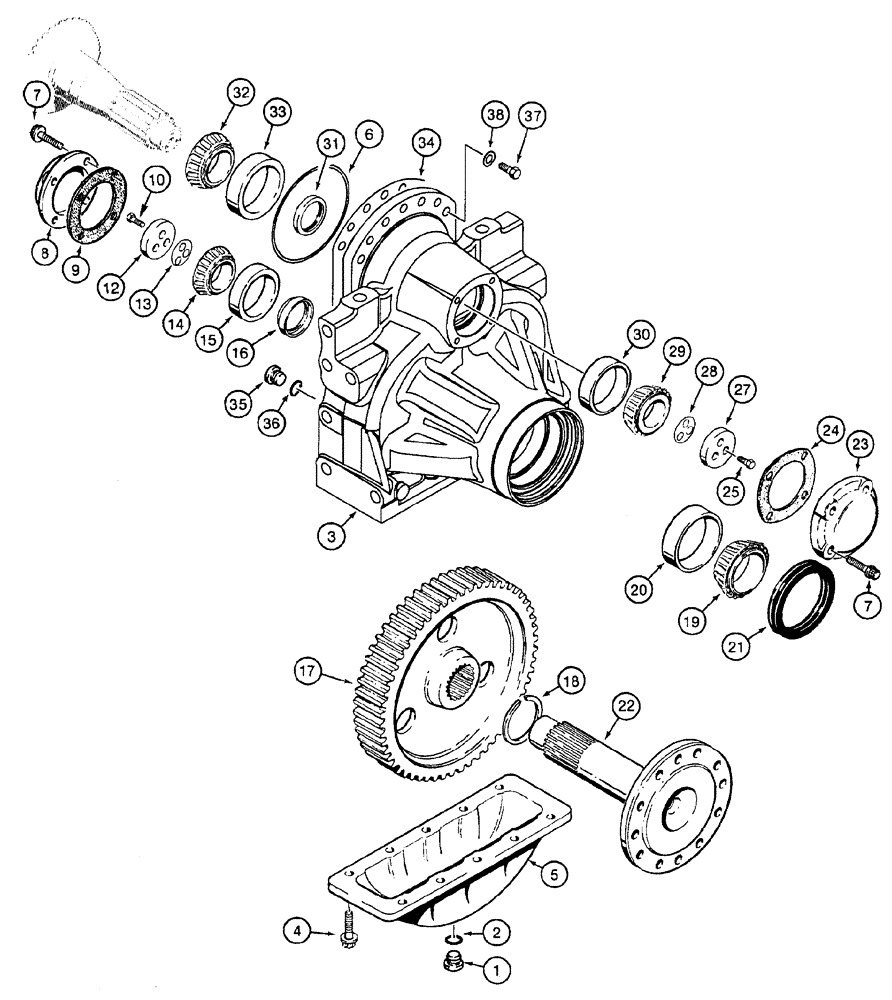

Запчасти Case 850H (06-10) - TRANSMISSION - FINAL DRIVE, 1778 MM (70") GAUGE WIDE TRACK (WT) OR LOW GROUND PRESSURE (LGP) MODELS (06) - POWER TRAIN

329836A3

TRANSMISSION

For Complete Assembly, See figures 6-04 - 6-14, 7-03

1шт.

329836A3R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

329836A3C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

329849A1

DRIVE

Final Drive, Consists of: 1 - 30

2шт.

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

329851A1

HOUSING

1шт.

4

566-203

12 PT SCREW,M10 x 35mm, Cl 12.9

M12 x 35; 12.9

10шт.

5

1348875C2

COVER

Lower, Use Sealant B17555

1шт.

B17555

LOCTITE

No. 515, 50 ml

1шт.

6

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

1-1/16 ID x 3/32

1шт.

7

566-202

12 PT SCREW,M10 x 25mm, Cl 12.9

M12 x 22; 12.9

8шт.

8

G103711

COVER

Drive Shaft

1шт.

9

G103710

GASKET

1шт.

10

110-14

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

3шт.

12

1997098C1

PLATE

Bearing Retainer, Drive Shaft

1шт.

13

G101997

SHIM,.005" Thk

(0.127 mm)

1шт.

13

G101998

SHIM,.007" Thk

(0.178 mm)

1шт.

13

G101999

SHIM,.020" Thk

(0.508 mm)

1шт.

14

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

Drive Shaft, Inner

1шт.

15

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

Drive Shaft, Inner

1шт.

16

A50721

SPACER

1шт.

17

329858A1

GEAR

86T, Final Drive

1шт.

18

101-11393

SNAP RING,#393, 3.713, Ext

No. 393

1шт.

19

L33736

ROLLER BEARING

Drive Shaft, Outer

1шт.

20

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

Drive Shaft, Outer

1шт.

21

G109655

SEAL

1шт.

22

G106950

SHAFT

Final Drive

1шт.

23

G105822

COVER ASSY

Upper, Gear Shaft

1шт.

24

G101598

GASKET

1шт.

25

608-12030

BOLT,Hex, M12 x 30mm, Cl 10.9

M12 x 30; 10.9

3шт.

27

1997100C1

PLATE

Bearing Retainer, Bevel Gear

1шт.

28

G100328

SHIM,.005" Thk

(0.127 mm)

1шт.

28

G100329

SHIM,.007" Thk

(0.178 mm)

1шт.

28

G100330

SHIM,.020" Thk

(0.508 mm)

1шт.

29

1997114C1

TAPERED BEARING,55.001 mm ID x 39 mm

Bevel Gear, Outer

1шт.

30

895366C1

BEARING CUP

Bevel Gear, Outer

1шт.

31

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

Housing, Bevel Gear

1шт.

32

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

Bevel Gear, Inner

1шт.

33

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

Bevel Gear, Inner

1шт.

34

360376A1

SHIM

0,076 mm (0,003 in)

1шт.

34

360375A1

SHIM

0,127 mm (0,005 in)

1шт.

34

360377A1

SHIM

0,508 mm (0,02 in)

1шт.

35

221579A1

PLUG,M22 x 1.5 ORB

Includes 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

608-16050

BOLT,Hex, M16 x 50mm, Cl 10.9

M16 x 50; 10.9, Use Loctite No. 271

22шт.

B17500

LOCTITE

Loctite, No. 271, 6 ml

1шт.

38

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

22шт.
