Запчасти Case 850H (06-05) - TRANSMISSION - RANGE, HIGH/LOW (06) - POWER TRAIN

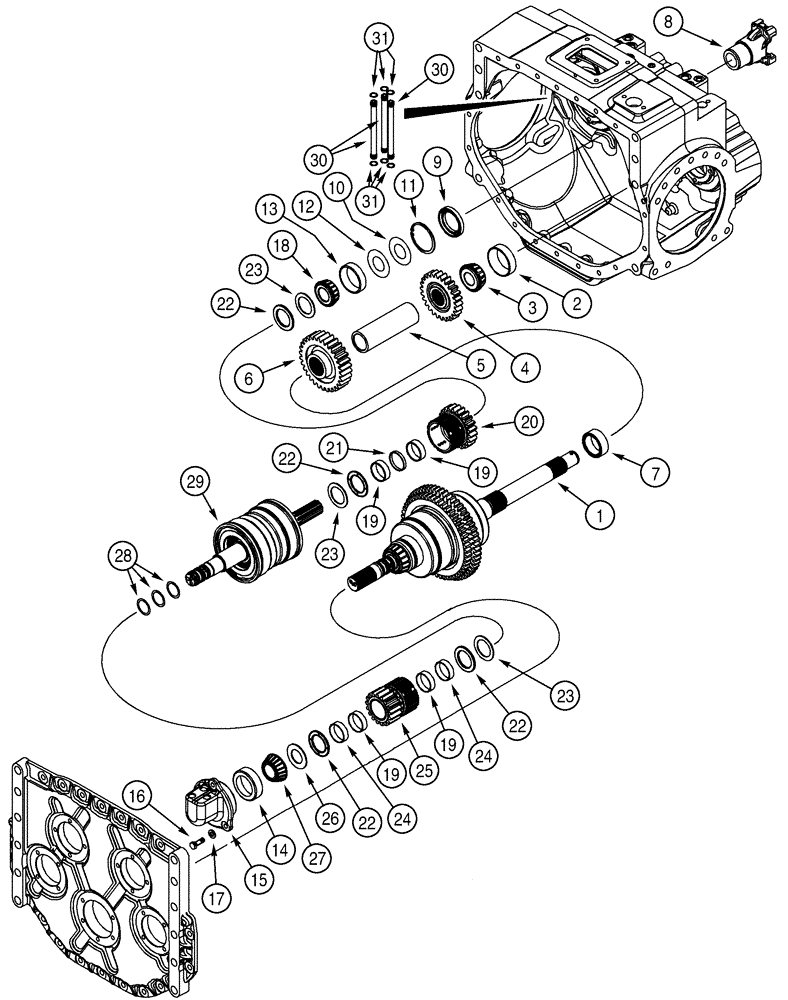

Схема запчастей Case 850H - (06-05) - TRANSMISSION - RANGE, HIGH/LOW (06) - POWER TRAIN
3
27
31
23
9
16
18
30
23
1
22
17
29
10
5
2
30
22
19
15
26
19
25
8
12
14
24
6
4
19
23
28
21
7
11
24
31
13
19
22
20
22

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Transmission, Includes 1 - 43, For Complete Assembly, See figures 6-04 - 6-14, 7-03

1шт.

1

REF

INSTRUCTION

Shaft Assy, Main, See figure 6-08

1шт.

2

128242R1

BEARING CUP,76.225 mm OD x 23.863 mm

Main Shaft, Outer

1шт.

3

G106461

ROLLER BEARING,33.34mm ID x 28.78mm W

Main Shaft, Outer

1шт.

4

315942A1

GEAR

26T, High Range, Driven

1шт.

5

360387A1

SPACER

1шт.

6

315943A1

GEAR

30T, Low Range, Driven

1шт.

7

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

1шт.

8

329881A1

YOKE

UNIVERSAL JOINT YOKE , See Page(s) 6-3, Input Shaft

1шт.

9

329847A2

SEAL

1шт.

10

1997006C2

SHIM

3,175 mm

1шт.

11

100-21300

SNAP RING,3.00", Int, #300

1шт.

12

329908A1

SHIM

0,305 mm

1шт.

12

329909A1

SHIM

0,127 mm

1шт.

13

165964R1

BEARING CUP

Outer

1шт.

14

330552A1

BEARING CUP,79.3877 mm OD x 22.5628 mm

Inner

1шт.

15

329906A1

CAP

1шт.

16

608-10030

BOLT,Hex, M10 x 30mm, Cl 10.9

3/8 x 1-1/4; 8

3шт.

17

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2,5 mm

3шт.

18

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1шт.

19

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

4шт.

20

329855A1

GEAR

22T, High Range, Driver

1шт.

20

315949A1

GEAR

22T, High Range, Driver, Optional

1шт.

21

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

1шт.

22

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

4шт.

23

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

3шт.

24

228800A1

SPACER

2шт.

25

329857A1

GEAR

17T, Low Range, Driver

1шт.

25

315950A1

GEAR

17T, Low Range, Driver, Optional

1шт.

26

329878A1

THRUST WASHER

1шт.

27

330551A1

ROLLER BEARING,36.512 mm ID x 29.4716 mm

1шт.

28

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING

3шт.

29

315944A1

Input, See figure 6-06

1шт.

30

329910A2

TUBE,8 mm ID, 15.35 mm OD, 165 mm Length

Jumper

3шт.

31

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

6шт.

Выбрано товаров: 35
