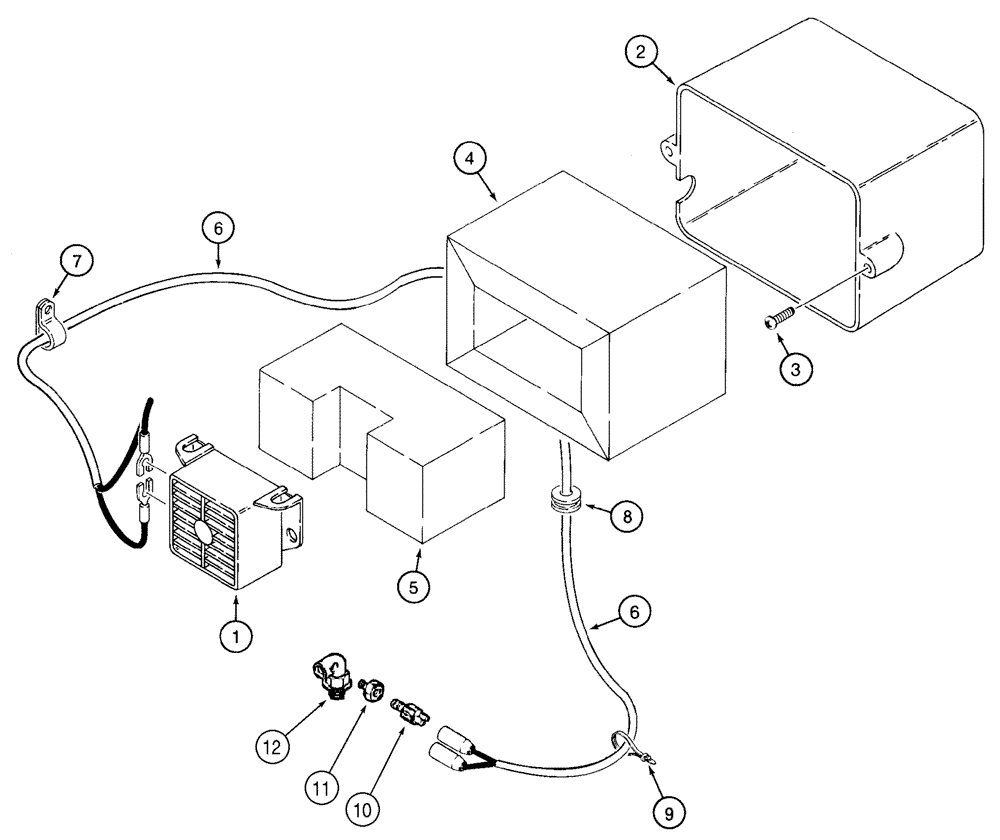

Запчасти Case 850H (04-18) - ALARM - BACKUP (04) - ELECTRICAL SYSTEMS

1

L112318

ALARM

Backup

1шт.

2

R50647

BOX

1шт.

3

261-55712

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

4

R50648

FOAM

1шт.

5

R51815

PAD

254 mm (10 in), Cut From R30870

1шт.

6

361795A1

ELECTRICAL WIRE

WIRE , Backup Alarm

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

8

A23870

GROMMET

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

10

D139904

SWITCH

Backup Alarm

1шт.

11

R52651

FITTING

1шт.

12

G107178

ELBOW

See figures 6-12

1шт.
