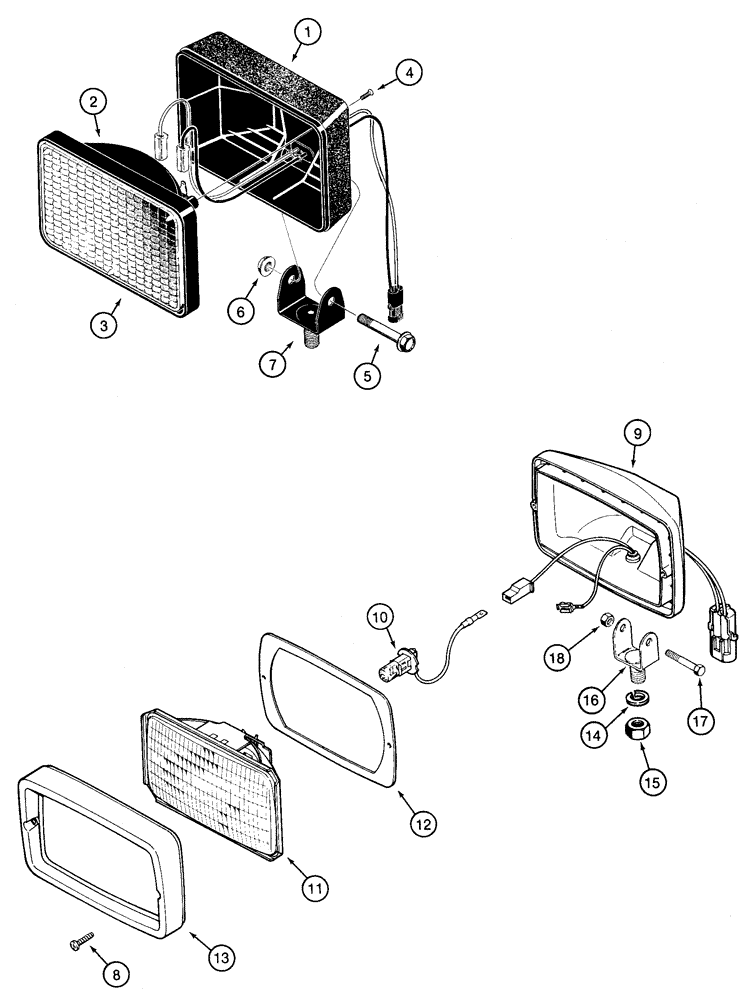

Запчасти Case 850H (04-17) - LAMP ASSY, FRONT AND REAR, MODELS WITH CANOPY/ MODELS WITH CAB (04) - ELECTRICAL SYSTEMS

D137294

LIGHT ASSY.

Front And Rear, Consists Of 1 - 7, Production Only, For Service Order ZAA7189850

4шт.

ZAA7189850

HEADLIGHT

Not Illustrated

4шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Retainer, Housing

1шт.

3

F45230

HEADLIGHT

28V, 60W, Halogen

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

230-4215

NUT,5/16"-18, GA

1шт.

7

N8347

SUPPORT

1шт.

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Front And Rear, includes: 8 - 18, Models With Cab

4шт.

8

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

Models with Cab

2шт.

9

NSS

NOT SOLD SEPARAT

Base, Lamp, Models With Cab

1шт.

10

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W, Models with Cab

1шт.

11

276498A1

LENS

Includes: 12, Models With Cab

1шт.

12

NSS

NOT SOLD SEPARAT

Gasket, Mounting, Models With Cab

1шт.

13

1964806C1

BEZEL

Models With Cab

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

Models with Cab

1шт.

16

A187915

BRACKET

Models With Cab

1шт.

17

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

Models with Cab

1шт.

18

832-41308

NUT,M8 x 1.25, Cl 10

Models with Cab

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm, Models with Cab

1шт.
