Запчасти Case 850H (04-07) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

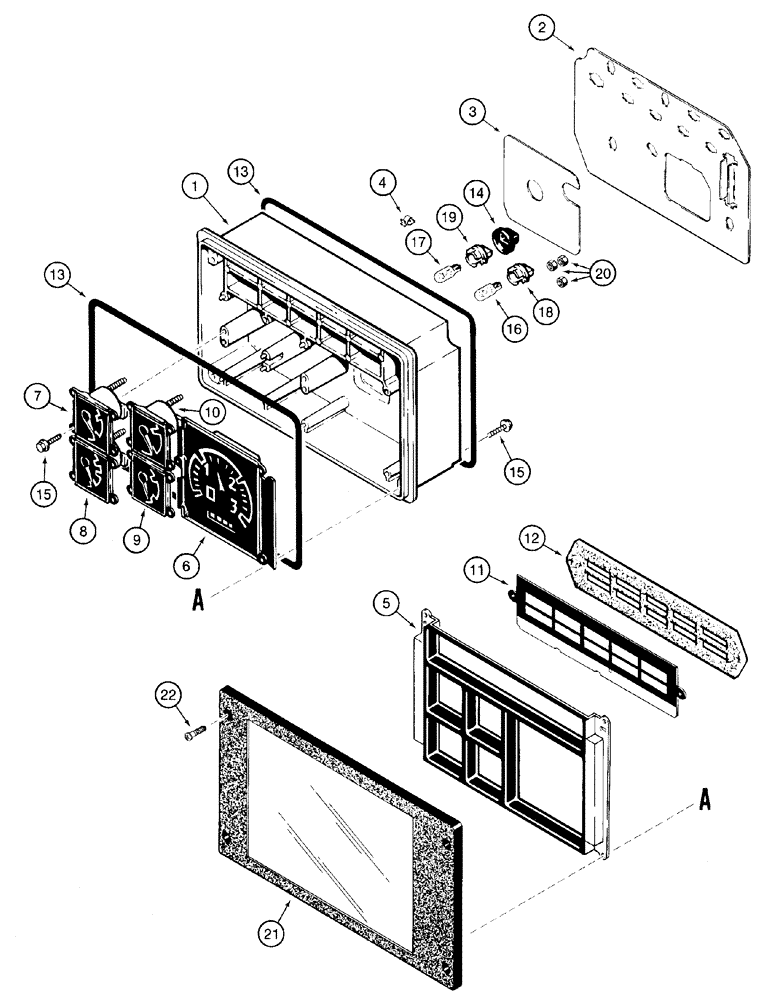

Схема запчастей Case 850H - (04-07) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS
21
4
13
1
15
14
7
9
10
8
12
13
11
5
16
15
6
3
2
20
17
19
22
18

Артикул

Название

Примечание

Количество

337514A2

CLUSTER

Consists of: 1 - 21

1шт.

A191114

HOUSING

Consists of: 1 - 4

1шт.

1

N13545

INSTRUMENT PANEL

1шт.

2

H422774

BOARD, PRINTED CIRCU

IT

1шт.

3

H422758

GASKET,1.52mm Thk

1шт.

4

H422766

CLIP, SPRING

Gauge

12шт.

5

A45007

LENS

Instrument Cluster

1шт.

6

N13543

TACHOMETER

Tachometer, Includes Hourmeter

1шт.

7

N13542

GAUGE

Water Temp

1шт.

8

347638A1

GAUGE

Fuel Level

1шт.

9

N6807

ELECTRICAL GAUGE

Voltmeter

1шт.

10

371046A1

GAUGE

Oil Temperature

1шт.

11

347304A1

LENS

Warning Lamp

1шт.

12

D71342

GASKET,3.05mm Thk

Lens

1шт.

13

D71343

GASKET,4.45mm Thk x 249.68mm ID

Instrument Cluster

2шт.

14

D71344

COVER

Rubber, Lamp Socket

10шт.

15

A45093

SCREW,Hex Slotted, 12.70"

Special

12шт.

16

D71346

TAIL LAMP,12V

No. 168

8шт.

17

W10478

LAMP

No. 194

3шт.

18

A47123

SOCKET/RECEPTACLE

8шт.

19

A47125

PEDESTAL

Green

3шт.

20

225-14106

NUT,#6-32

3шт.

21

N14225

SHIELD

Instrument Cluster

1шт.

22

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

4шт.

Выбрано товаров: 24
