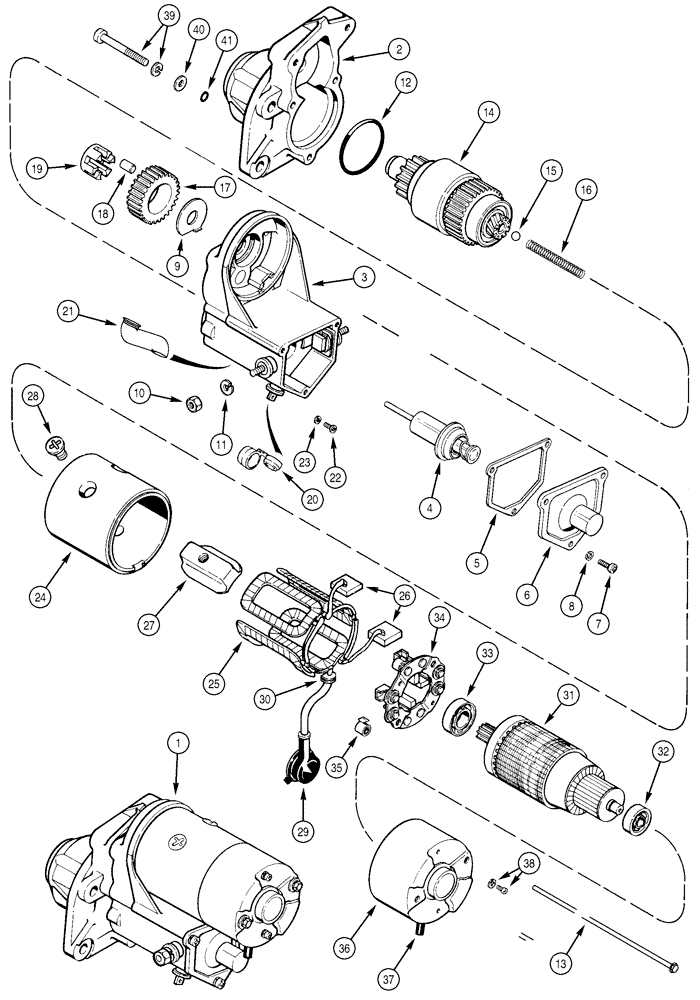

Запчасти Case 850H (04-01) - STARTER ASSY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
282161A1
STARTING MOTOR,12V, 2.7kW
Consists Of 2 - 41
1шт.
1
282161A1R
REMAN-STARTER,12V, 2.7kW
Reman for New P/N 282161A1
1шт.
1
282161A1C
CORE-STARTER,12V, 2.7kW
Return Number
1шт.
2
332474A1
COVER
1шт.
3
332469A1
SWITCH
Consists Of 4 - 11
1шт.
4
NSS
NOT SOLD SEPARAT
Solenoid
1шт.
5
NSS
NOT SOLD SEPARAT
Seal
1шт.
6
NSS
NOT SOLD SEPARAT
Cover Sheet
1шт.
7
NSS
NOT SOLD SEPARAT
Screw
3шт.
8
NSS
NOT SOLD SEPARAT
Washer
3шт.
9
141360A1
WASHER
1шт.
10
332468A1
NUT
M10, Includes 11
1шт.
11
NSS
NOT SOLD SEPARAT
Washer, Spring
1шт.
12
1546500C1
SEAL,2.4mm Thk x 47.2mm ID
1шт.
13
332467A1
BOLT
M6 x 181
2шт.
14
258840A1
CLUTCH ASSEMBLY
1шт.
15
211-1311
BALL,11/32" Dia
200, CRS
1шт.
16
A47232
SPRING
2-13/16
1шт.
17
A47233
GEAR
1шт.
18
A47235
ROLLER BEARING
5шт.
19
A47236
RETAINER
1шт.
20
141354A1
RING
Insulation
1шт.
21
332470A1
RING ASSY.
Drain
1шт.
22
NSS
NOT SOLD SEPARAT
M5 x 8, Screw
1шт.
23
NSS
NOT SOLD SEPARAT
M5, Washer, Lock
1шт.
332465A1
STATOR
Includes: 24 - 29
1шт.
24
NSS
NOT SOLD SEPARAT
Housing
1шт.
25
NSS
NOT SOLD SEPARAT
Coil Assy
1шт.
26
NSS
NOT SOLD SEPARAT
Brush
2шт.
27
NSS
NOT SOLD SEPARAT
Shoe
4шт.
28
NSS
NOT SOLD SEPARAT
Screw
4шт.
29
NSS
NOT SOLD SEPARAT
Boot
1шт.
30
NSS
NOT SOLD SEPARAT
Plate, Locking
1шт.
31
332446A1
ARMATURE
Includes: 32, 33
1шт.
32
452698C1
BALL BEARING,10mm ID x 30mm OD x 9mm W
Commutator End
1шт.
33
A47247
BALL BEARING,17mm ID x 35mm OD x 10mm W
drive end
1шт.
34
A47239
HOLDER
Includes 35
1шт.
35
A47249
SPRING
4шт.
36
332466A1
COVER
commutator end
1шт.
37
258883A1
BUSHING
Drain
1шт.
38
141361A1
CAPTIVE WASHER SCREW,M5 x 9.40mm
with washer
2шт.
A47230
BOLT
Consists Of 39 - 41
3шт.
39
A47129
CAPTIVE WASHER SCREW
with washer
1шт.
40
495-81252
WASHER,#12
(Flat, 1/4" x 9/16" x 1/16")
1шт.
41
A47130
O-RING
1шт.
Выбрано товаров: 45
