Запчасти Case 850H (03-09) - FUEL INJECTION - PUMP AND DRIVE, 6T-590 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

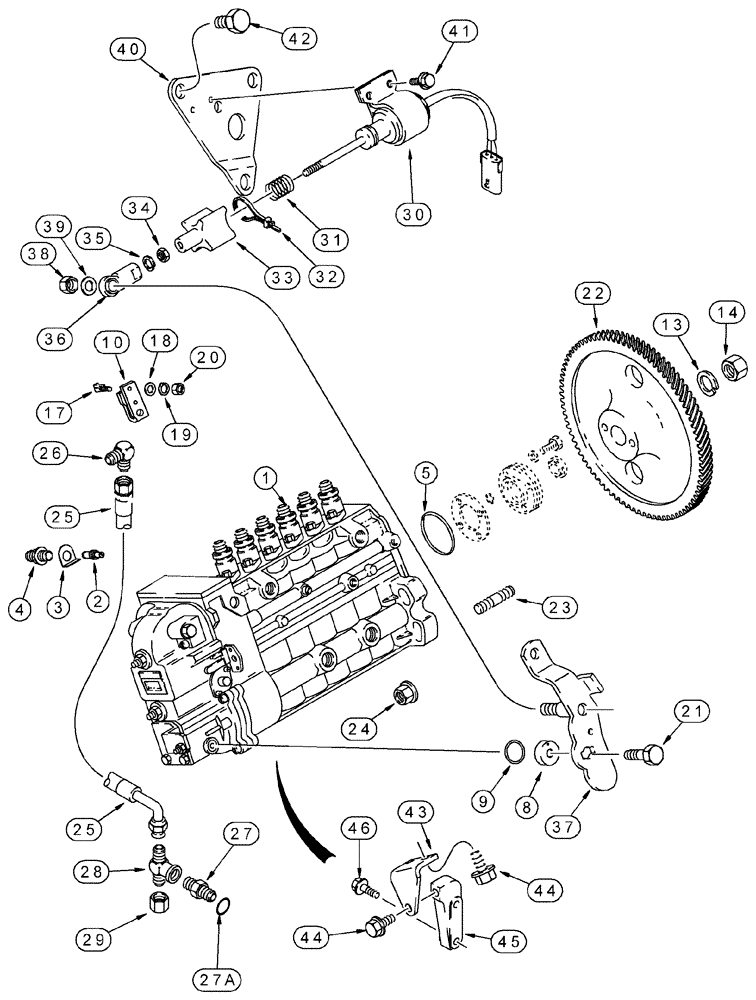

Схема запчастей Case 850H - (03-09) - FUEL INJECTION - PUMP AND DRIVE, 6T-590 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
44
36
14
35
13
27a
33
24
17
3
21
27
4
28
18
23
1
39
41
37
2
25
31
8
10
25
20
30
26
46
29
5
43
19
32
44
22
42
40
9
38
34
45

Артикул

Название

Примечание

Количество

1

J931398

PUMP, FUEL INJECTION

PUMP, INJECTION , Consists Of 2 - 21

1шт.

JR931398

REMAN-INJECTION PUMP

Remanufactured Pump Assy; For N.A. only

1шт.

JC931398

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

5

J935032

SEAL

1шт.

8

691292C1

RETAINER

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

10

1808728C1

LEVER

1шт.

13

A77775

LOCK WASHER

1шт.

14

A41852

LOCK NUT

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

829-1306

NUT,M6, Cl 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

22

J934636

PINION

1шт.

23

J915036

STUD

55 mm (2-5/32 in)

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

26

A77512

ELBOW

male

1шт.

27

J932321

UNION

Includes 27A

1шт.

27a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

28

J924346

TEE

1/8 PT x 7/16

1шт.

28a

J906619

PLUG,1/8" - 27

1/8 PT, Cylinder Block, Not Illustrated

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

1шт.

30

J932529

SOLENOID

12V, Consists Of 31 - 36

1шт.

31

311100A1

SPRING

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J925171

BOOT

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

311099A1

JOINT

1шт.

J802998

PACKAGE,SERVICE

Lever, Consists Of 37, 38, 39

1шт.

37

NSS

NOT SOLD SEPARAT

Lever

1шт.

38

832-41306

NUT,M6 x 1, Cl 10

1шт.

39

J934022

WASHER

1шт.

40

J930589

SUPPORT

1шт.

41

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

42

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

3шт.

43

J863311

BRACE

1шт.

44

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

3шт.

45

J863312

BRACE

1шт.

46

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

47

J915945

SWITCH

1шт.

48

J918364

HARNESS

1шт.

Выбрано товаров: 47
