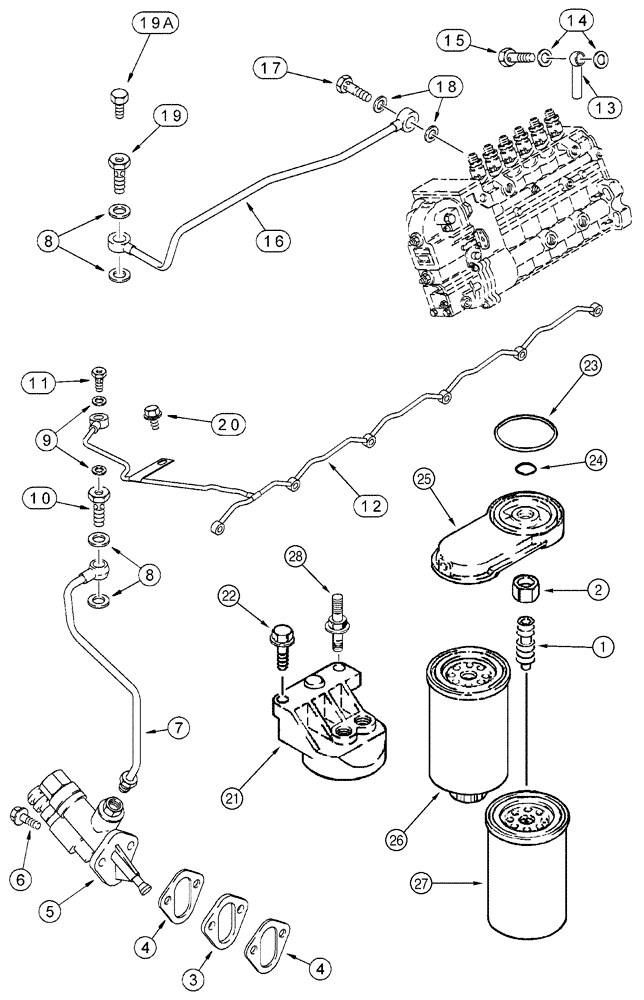

Запчасти Case 850H (03-08) - FUEL FILTER - PUMP, TRANSFER, 6T-590 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

2

J903293

JAM NUT

M16

1шт.

3

J914284

SPACER

1шт.

4

J931059

GASKET

2шт.

5

J936316

FUEL PUMP

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J928423

FUEL TUBE,8 mm OD x 323.9 mm L

1шт.

8

J935171

SEALING WASHER

12 x 19 x 1,5 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

10

J916361

BANJO BOLT

M12 x 24

1шт.

11

J924726

BANJO BOLT

1шт.

12

J933295

MANIFOLD

1шт.

13

J933250

FITTING

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

15

J932096

VALVE

1шт.

16

J930733

FUEL TUBE,8 mm OD

Replaces J930735

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

Consists Of 19, 19A

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt

1шт.

19a

NSS

NOT SOLD SEPARAT

Screw

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

21

J933752

HEAD

1шт.

22

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

23

J903546

O-RING

70 mm

1шт.

24

J903846

O-RING

14 mm

1шт.

25

J897331

SUPPORT

1шт.

A77470

SEPARATOR

KIT, Includes 26, 27

1шт.

26

J930942

SEPARATOR

Primary

1шт.

27

J931063

FUEL FILTER

Secondary

1шт.

28

J928527

FLANGE BOLT,Spcl, Hex, M6 x 1 - M8 x 1.25 x 35mm, Full Thd

1шт.
