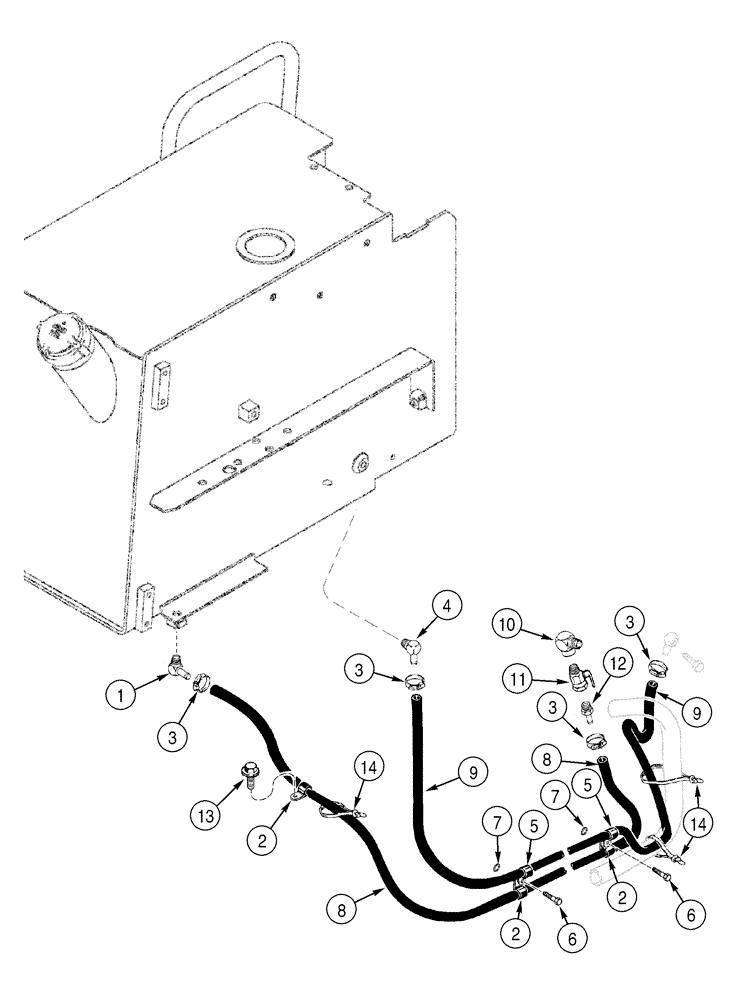

Запчасти Case 850H (03-06) - FUEL LINES (03) - FUEL SYSTEM

1

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

3

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1/2 - 29/32

4шт.

4

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

5

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

6

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

7

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

2шт.

8

256728A1

FUEL HOSE

Supply, Cut From S118466X

1шт.

9

256729A1

FUEL HOSE

Return, Cut From S118400X

1шт.

10

218-923

ELBOW,90 Degree, 1/2" NPTF Male x 3/8" NPSM Fem Sw

90°, 1/2 male x 3/8 fem

1шт.

11

284721A1

VALVE

shut-off

1шт.

12

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

13

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.
