Запчасти Case 850H (03-01) - CONTROLS, THROTTLE - CABLE AND HAND LEVER (03) - FUEL SYSTEM

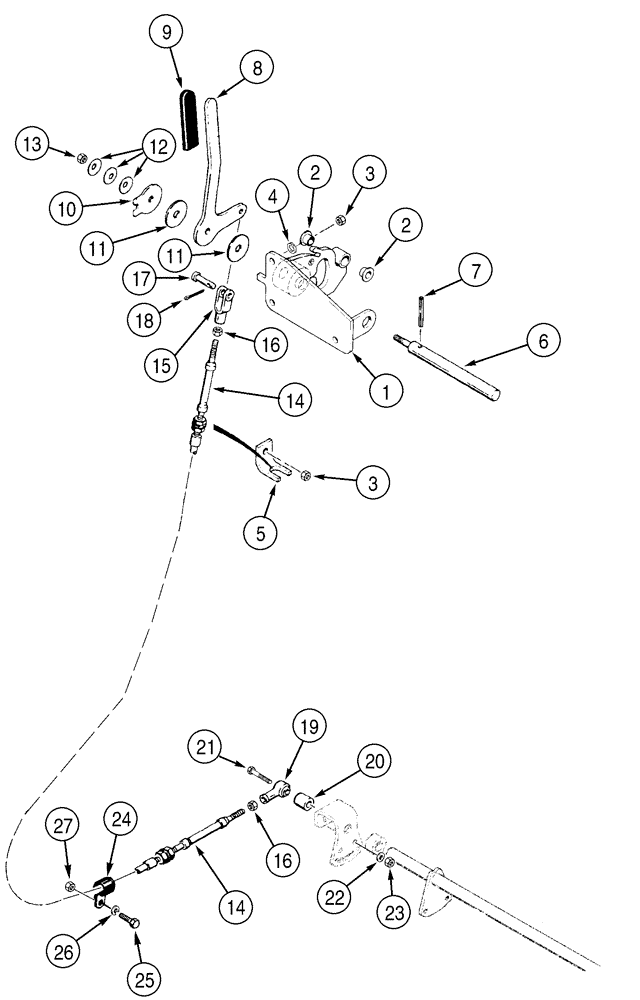

Схема запчастей Case 850H - (03-01) - CONTROLS, THROTTLE - CABLE AND HAND LEVER (03) - FUEL SYSTEM
24
4
16
10
16
6
26
11
14
19
14
23
3
22
2
2
25
5
18
27
21
17
3
12
15
8
11
7
1
13
20
9

Артикул

Название

Примечание

Количество

1

106584A2

BRACKET

Throttle and Transmission Controls, Includes: 2

1шт.

2

R58311

BRONZE BUSHING

Bronze

2шт.

3

231-1446

NUT,3/8" - 16, Gr 5

4шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

3шт.

5

CASR52478

BRACKET

1шт.

6

R57937

SHAFT

1шт.

7

38-11632

LOCK PIN,1/4" x 2", Slotted

1шт.

8

R57933

LEVER

Throttle

1шт.

9

R52376

MOLDING

1шт.

10

R57932

LARGE PLATE

PLATE, LARGE

1шт.

11

R52389

DISC

friction

2шт.

12

R58742

WASHER

belleville

3шт.

13

231-1446

NUT,3/8" - 16, Gr 5

1шт.

14

R57954

CABLE

Throttle

1шт.

15

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

16

425-115

NUT,5/16"-24, G5

2шт.

17

D149287

PIN,7.9mm OD x 26.72mm L

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

1шт.

19

R47498

END

Ball Joint

1шт.

20

F13386

SPACER

1шт.

21

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

22

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

23

231-1445

NUT,5/16"-18, GB

1шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

25

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-108

NUT,1/2" - 13, Gr 5

1шт.

Выбрано товаров: 27
