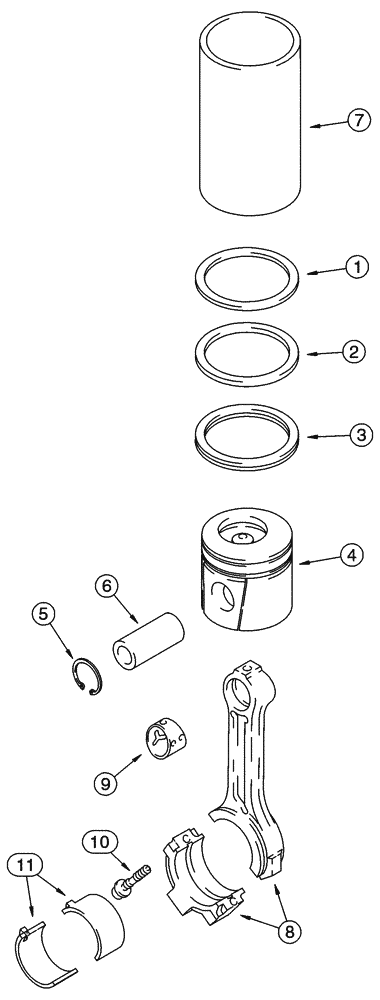

Запчасти Case 850H (02-20) - PISTONS - CONNECTING RODS, 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

Standard, Consists Of J802746, 1 - 5

6шт.

J802746

PISTON RING SET

Consists Of 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Standard

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

J802764

PISTON & RINGS KIT

0,5 mm, Oversize 0,5 mm, Consists Of J802422, 1 - 5

6шт.

J802422

PISTON RING SET

0,5 mm, Consists Of 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 0,5 mm

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

J802765

PISTON & RINGS KIT

1,0 mm, Oversize 1,0 mm, Consists Of J802423, 1 - 5

6шт.

J802423

PISTON RING SET

1,0 mm, Consists Of 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 1,0 mm

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

7

J904166

SLEEVE

Use With J802747

1шт.

J942581

ROD, CONNECTING

Consists Of 8 - 10

1шт.

JR942581

REMAN-CONNECTING ROD

Reman for New PN J942581

1шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod

1шт.

84145405R

REMAN-CONNECTING ROD

850H, Reman For New PN J942581

1шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

Rod, connecting

1шт.

9

J941476

BUSHING

Connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59, connecting rod

2шт.

11

A77465

BEARING SET

Standard

6шт.

11

A77466

BEARING SET

Undersize 0,25 mm

6шт.

11

A77467

BEARING LINER

Undersize 0,50 mm

6шт.

11

A77468

BEARING SET

Undersize 0,75 mm

6шт.

11

A77469

BEARING SET

Undersize 1,00 mm

6шт.
