(02-19) - FLYWHEEL AND HOUSING, 6T-590 EMISSIONS CERTIFIED ENGINE

Запчасти Case 850H (02-19) - FLYWHEEL AND HOUSING, 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

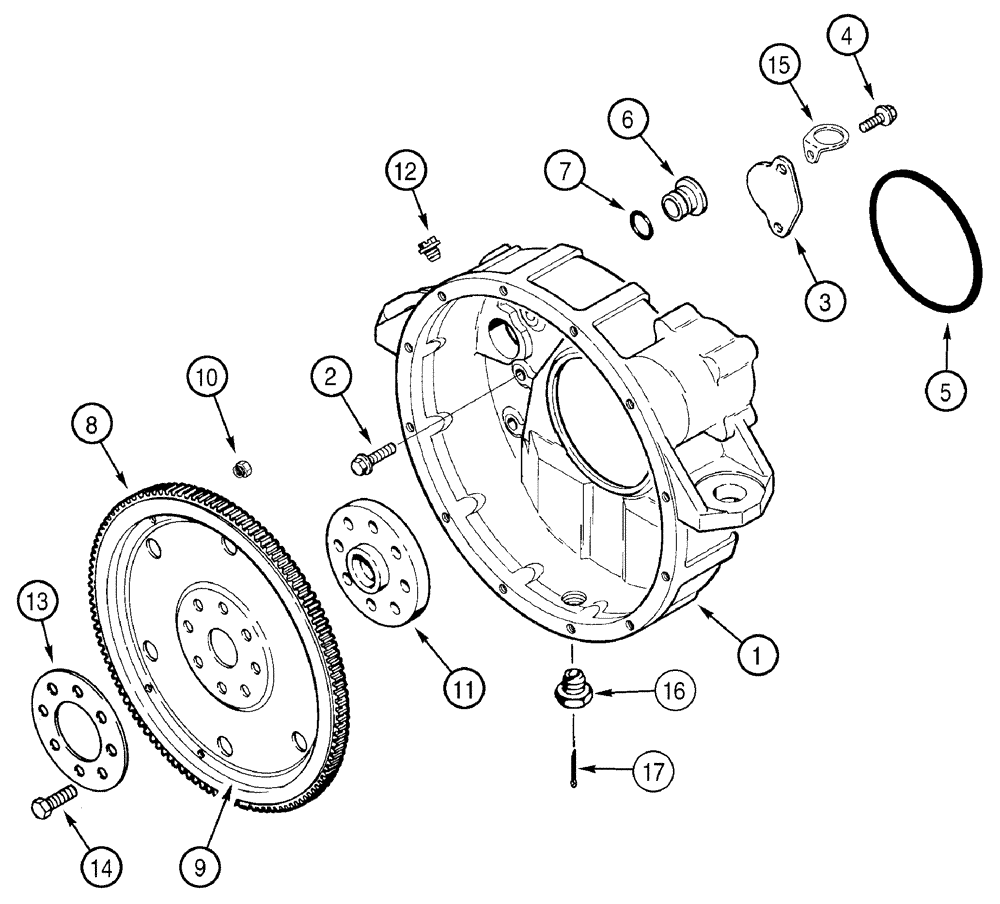

Схема запчастей Case 850H - (02-19) - FLYWHEEL AND HOUSING, 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
7
10
12
16
17
4
13
6
14
2
8
9
15
11
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J931714

HOUSING

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

1шт.

5

J912072

SELF-TAP SCREW

M8 st x 15

2шт.

6

J910248

PLUG

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

J934936

FLYWHEEL

Consists Of 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Gear

1шт.

9

NSS

NOT SOLD SEPARAT

Plate

1шт.

10

NSS

NOT SOLD SEPARAT

M12 x 32, Nut

6шт.

11

J913689

FLANGE

1шт.

12

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

13

J904361

WASHER

1шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

15

J928989

CLIP

1шт.

16

L113178

PLUG

1шт.

17

32-1416

COTTER PIN,7/32" x 1"

1шт.
