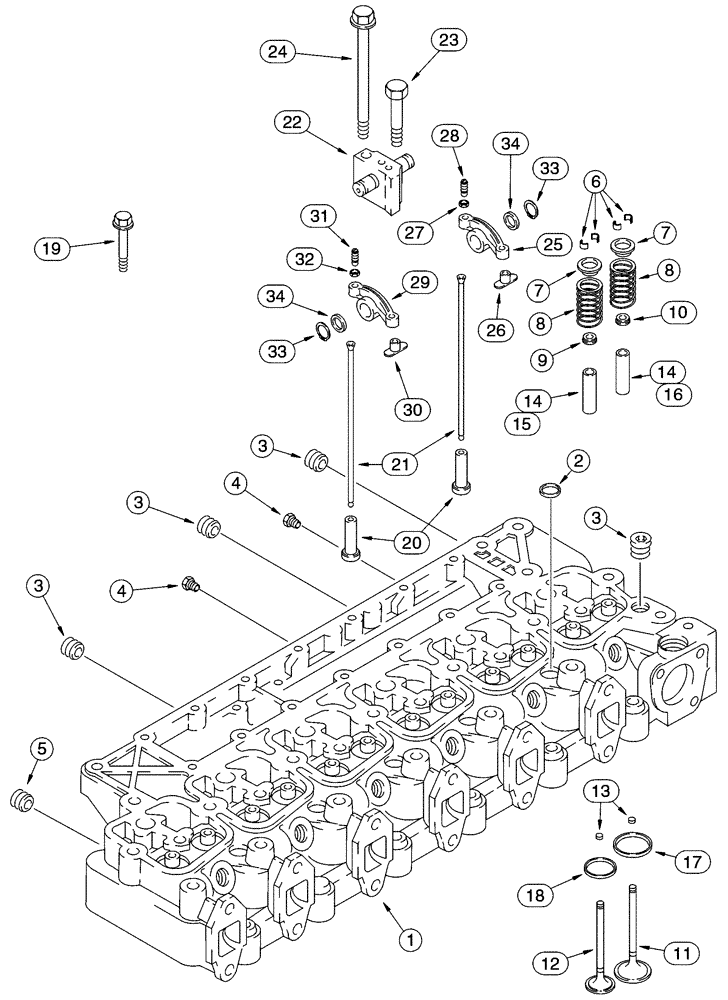

Запчасти Case 850H (02-15) - CYLINDER HEAD - VALVE MECHANISM, 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR934769

REMAN-CYLINDER HEAD

North America Only

1шт.

JC927301

CORE-CYLINDER HEAD

1шт.

J934769

HEAD (CYLINDER)

With valves, Consists of 1 - 12

1шт.

1

J934746

HEAD (CYLINDER)

Without valves, Consists of: 2

1шт.

2

A77782

PLUG

58 mm

5шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

5

A77505

PLUG

3/4 PT

1шт.

6

CASJ900250

RETAINER

24шт.

7

J935038

RETAINER

12шт.

8

J926700

VALVE SPRING

12шт.

9

J921640

SEAL

6шт.

10

J921640

SEAL

6шт.

11

J920867

VALVE

intake

6шт.

12

J920868

VALVE

exhaust

6шт.

13

J910412

WEAR PAD

Intake And Exhaust, Service Repair Only

12шт.

14

J904408

GUIDE

14 mm OD, Intake, Service Repair Only, Ream To Fit

6шт.

15

J904409

GUIDE

14 mm OD, Exhaust, Service Repair Only, Ream To Fit

6шт.

16

J906206

GUIDE

11 mm OD, Intake And Exhaust, Service Repair Only, Ream To Fit

12шт.

17

J906854

SEAT, VALVE

Intake, Service Repair Only

6шт.

18

J904105

SEAT, VALVE

Exhaust, Service Repair Only

6шт.

19

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm

6шт.

19

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

14шт.

20

J931623

TAPPET

12шт.

21

J284377

PUSH ROD

12шт.

22

J922488

SUPPORT

6шт.

23

J901221

BOLT

M8 x 75

6шт.

24

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

6шт.

25

J910811

ROCKER

Consists of: 26 - 28

6шт.

26

NSS

NOT SOLD SEPARAT

Insert

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

28

A77902

NUT

3/8 - 24 NF

1шт.

29

J910810

ROCKER

Consists of: 30 - 32

6шт.

30

NSS

NOT SOLD SEPARAT

Insert

1шт.

31

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

32

A77902

NUT

3/8 - 24 NF

1шт.

33

J900242

SNAP RING

12шт.

34

J900245

WASHER

12шт.
