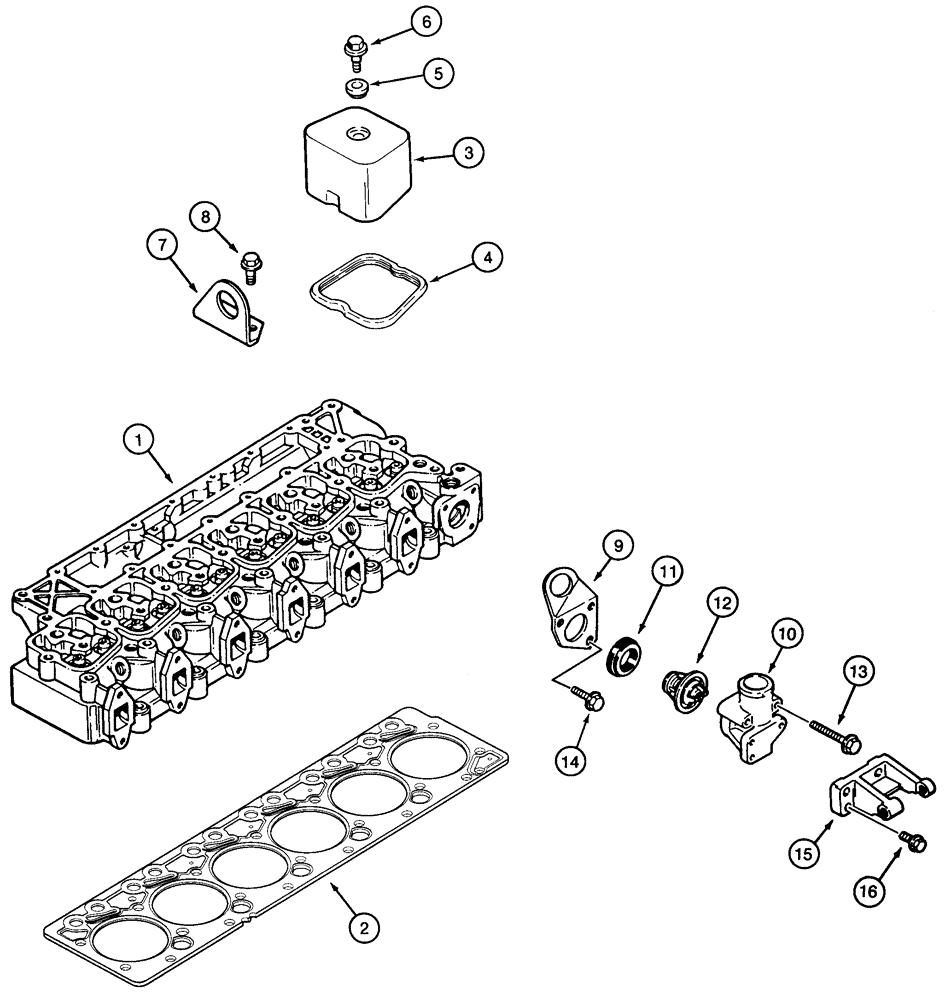

Запчасти Case 850H (02-14) - CYLINDER HEAD - COVER, 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

Head, Cylinder, See Figure 2-15

1шт.

2

J283335

GASKET,2.32mm Thk

1шт.

2

J283337

GASKET,2.24mm Thk

0,25 mm

1шт.

2

J283339

GASKET

0,50 mm

1шт.

3

J928404

COVER

6шт.

4

J930906

GASKET

6шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

6

J907049

BOLT,Hex

M8 x 21

6шт.

7

J908118

BRACKET

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

9

J903757

BRACKET

thermostat and housing

1шт.

10

J914409

HOUSING

thermostat

1шт.

A77736

THERMOSTAT

Thermostat, Consists Of 11, 12

1шт.

11

J923331

GASKET

thermostat and housing

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat and housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

15

J923387

SUPPORT

thermostat and housing

1шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Thermostat and Housing

3шт.
