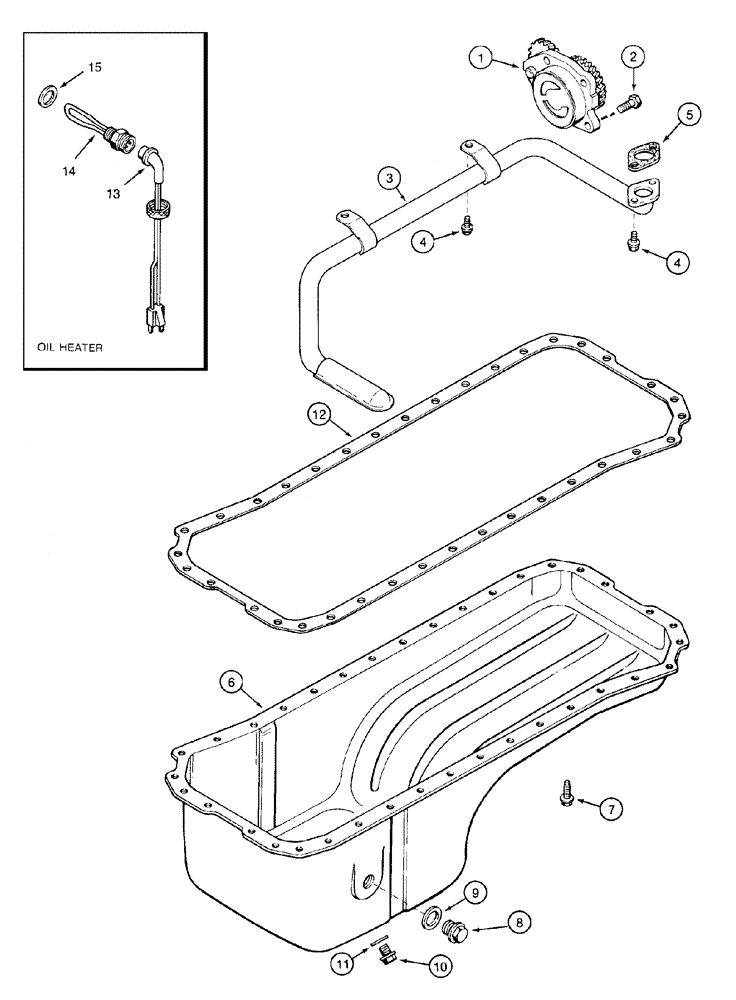

Запчасти Case 850H (02-13) - OIL PUMP, PAN - HEATER, 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J941742

PUMP, ENGINE OIL

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J931349

GASKET

mounting

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL

1шт.

7

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

36шт.

8

J924148

PLUG,M22 x 1.5

M22

1шт.

9

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

10

J924147

PLUG,M18 x 1.5

hex, M18

1шт.

11

J920773

SEALING WASHER

1шт.

12

NSS

NOT SOLD SEPARAT

Gasket, pan, order A77676

1шт.

A77676

GASKET KIT

Consists of: 5, 11, 12

1шт.

A77490

KIT

120V, Heater, Consists Of 13, 14, Also Order J902425

1шт.

13

196466A1

ELECTRIC CABLE

1829 mm (72 in), engine oil heater

1шт.

14

NSS

NOT SOLD SEPARAT

Element, engine oil heater

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

240 Volt, engine oil heater

1шт.

13

J905114

ELECTRIC CABLE

1829 mm (72 in), engine oil heater

1шт.

14

J904381

RESISTOR

240V, engine oil heater

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

engine oil heater

1шт.
