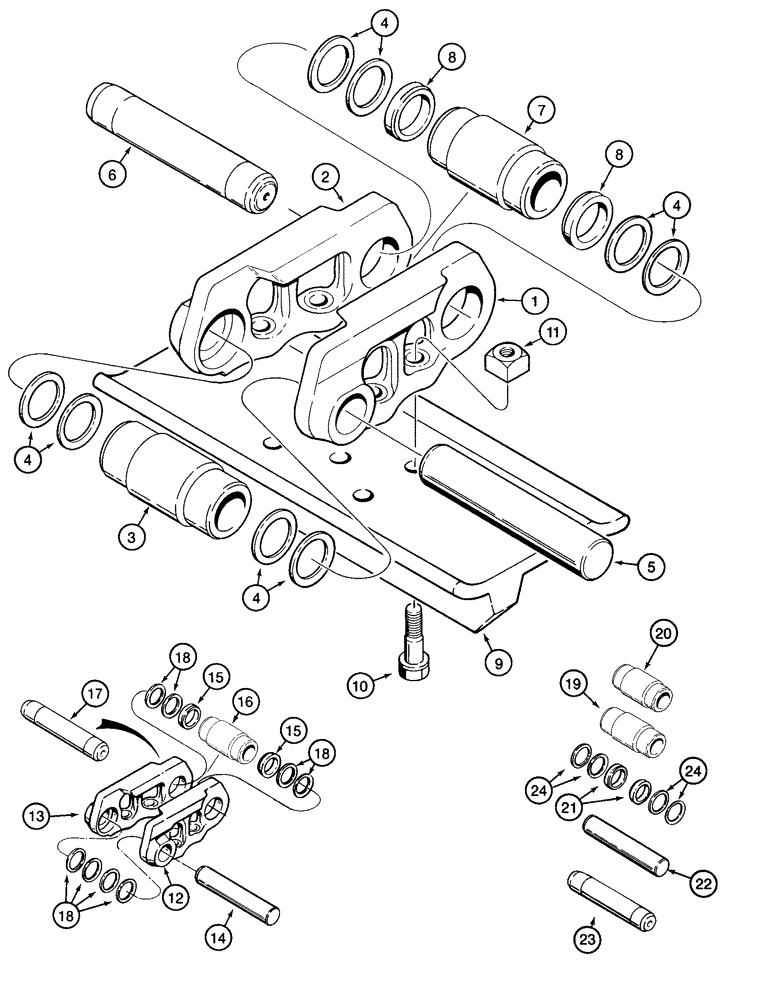

Запчасти Case 850H (05-08) - TRACK CHAIN, SEALED (11) - TRACKS/STEERING

300217A1

ASSEMBLY

Chain Track, Includes Shoes, Consists of: 1 - 11

2шт.

300212A1

CHAIN (CE)

track, Consists of: 1 - 8

2шт.

1

295178A1

LINK

Right Hand

38шт.

2

295177A1

LINK

Left Hand

38шт.

3

R56517

BUSHING

123,5 mm (4-7/8 in) OD, Link

37шт.

4

R50211

WASHER

Seal

152шт.

5

R49792

PIN,33.48mm OD x 183.5mm L

183 x 33 mm

37шт.

6

R54281

PIN,33.41mm OD x 183.5mm L

Master Link

1шт.

7

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

108 mm (4-1/4 in) OD, Master Link

1шт.

8

R50210

SPACER

2шт.

9

295181A1

TRACK SHOE

457 mm (18 in)

38шт.

10

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

Special 5/8 NF x 2-1/8

152шт.

11

R25688

SQUARE NUT

Square 5/8 NF

152шт.

300214A1

KIT

Includes Instructions, Consists of: 12 - 18 CHAIN UNIT

1шт.

12

295178A1

LINK

Right Hand CHAIN UNIT KIT

1шт.

13

295177A1

LINK

Left Hand CHAIN UNIT KIT

1шт.

14

R49792

PIN,33.48mm OD x 183.5mm L

183 x 33 mm CHAIN UNIT KIT

2шт.

15

R50210

SPACER

CHAIN UNIT KIT

2шт.

16

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

108 mm (4-1/4 in) OD, Master Link CHAIN UNIT KIT

1шт.

17

R54281

PIN,33.41mm OD x 183.5mm L

Master Link CHAIN UNIT KIT

1шт.

18

R50211

WASHER

CHAIN UNIT KIT

8шт.

R56023

KIT

Pin and Bushing, Consists of: 19 - 24

1шт.

19

R56517

BUSHING

123,5 mm (4-7/8 in) OD, Standard Pin KIT

74шт.

20

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

108 mm (4-1/4 in) OD, Master Pin KIT

2шт.

21

R50210

SPACER

PIN AND BUSHING KIT

4шт.

22

R49792

PIN,33.48mm OD x 183.5mm L

183 x 33 mm, Standard PIN AND BUSHING KIT

74шт.

23

R54281

PIN,33.41mm OD x 183.5mm L

Master Link PIN AND BUSHING KIT

2шт.

24

R50211

WASHER

PIN AND BUSHING KIT

304шт.
