Запчасти Case 850H (05-02) - SPROCKET, TRACK (11) - TRACKS/STEERING

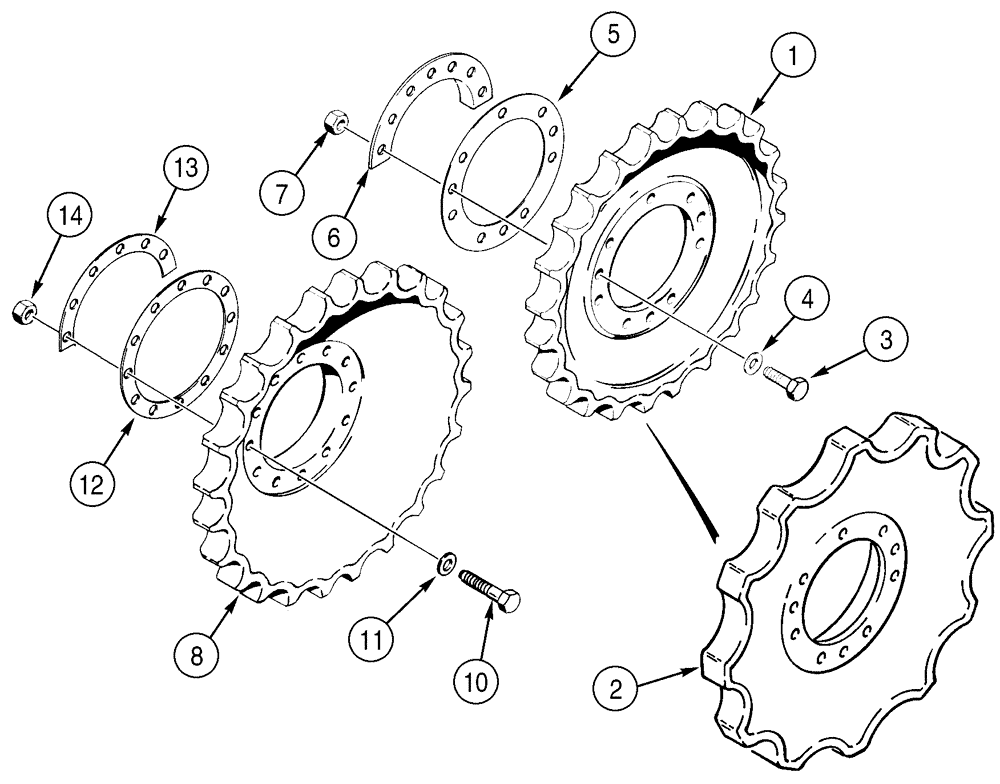

Схема запчастей Case 850H - (05-02) - SPROCKET, TRACK (11) - TRACKS/STEERING
7
5
4
2
3
12
13
10
1
14
6
11
8

Артикул

Название

Примечание

Количество

1

322122A1

SPROCKET ASSY.

23T

2шт.

1

322018A1

SPROCKET ASSY.

23T, Relieved

2шт.

2

321681A1

SPROCKET ASSY.

12T, Used on Models With Extended Life Track Chain

2шт.

3

R27954

BOLT

3/4 x 3

20шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

20шт.

5

R46160

SHIM,.032" Thk

1шт.

6

117702A1

GUARD

Used on Models With Steel Tracks, If Equipped

4шт.

7

29-1012

NUT,3/4"-10, G8

Use Loctite No. 242

20шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.

8

R56535

DRIVE SPROCKET

23T

2шт.

9

254403A1

SPROCKET ASSY.

12T, Used on Models With Extended Life Track Chain, Not Illustrated

2шт.

10

R31277

BOLT

3/4 x 4-1/4; 8

24шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

24шт.

12

R27241

SHIM,1/32" Thk

1шт.

13

192443A1

GUARD

If Equipped

4шт.

14

29-1012

NUT,3/4"-10, G8

Use Loctite No. 242

24шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.

Выбрано товаров: 17
