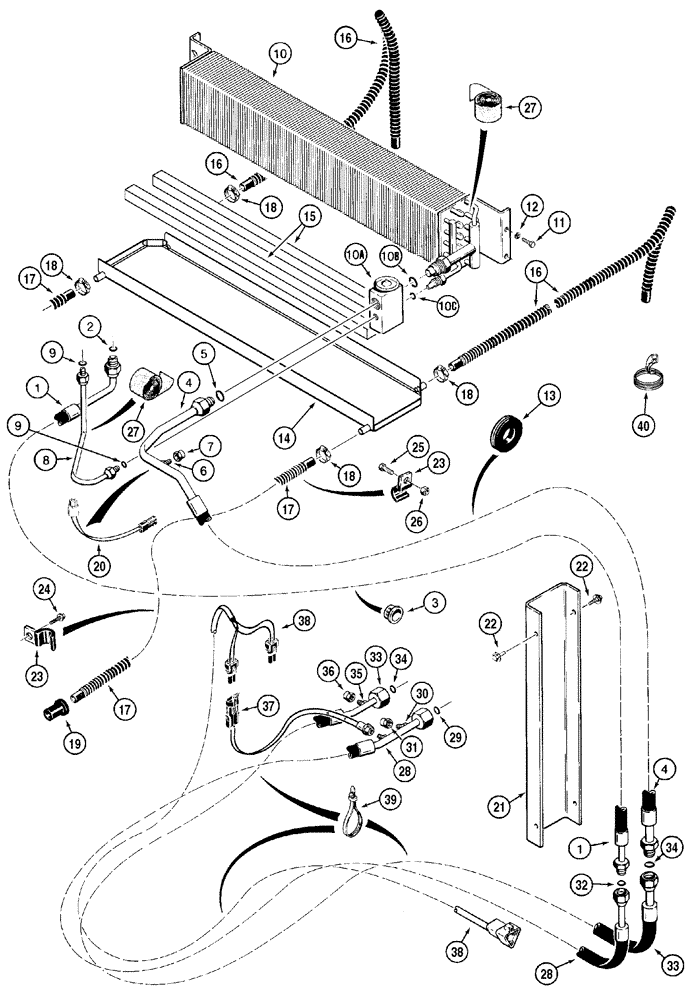

Запчасти Case 850H (09-35) - AIR CONDITIONING SYSTEM, INSIDE CAB ROOF (09) - CHASSIS

1

1975773C2

HOSE ASSY.

1840 mm (72-7/16 in), Attaches To Cab Roof Condenser Tube And To Hose On Chassis, Includes: 2

1шт.

2

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

3

353-482

PLUG

1-3/16 ID

1шт.

4

135525A1

HOSE ASSY.

1427 mm (56-3/16 in), Suction, Evaporator Core Expansion Valve Upper Port To Hose On Chassis, Includes: 5 - 7

1шт.

5

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

6

1250594C1

CORE

1шт.

7

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

7/16 NF fem x 45 deg fl

1шт.

8

1999507C1

TUBE

Cab Roof To Evaporator Core Lower Port On Expansion Valve, Attaches To Receiver-Drier Tube, Includes: 9

1шт.

9

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

10

1340490C4

EVAPORATOR

Evaporator, Includes: 10A - 10C

1шт.

10a

1990756C2

VALVE

expansion

1шт.

10b

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

10c

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

11

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

12

492-11025

LOCK WASHER,1/4"

4шт.

13

D132895

GROMMET

1шт.

253002A1

PAN ASSY.

Evaporator, Consists of: 14 - 15

1шт.

14

252628A1

PAN

Evaporator

1шт.

15

253008A1

SEAL

700 mm, Air

2шт.

16

R51356

508 mm (20 in), Cut From: F64508X

2шт.

17

R44128

1524 mm (60 in), Cut From: F64508X

2шт.

18

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

19

F44790

VALVE

Rear Drain Hose

2шт.

20

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

21

1999374C1

COVER

1шт.

22

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

socket, 5/16 x 1/2

4шт.

23

R49939

CLAMP

10шт.

24

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

6шт.

25

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

4шт.

26

86625057

NUT,#10-24, GB

4шт.

27

83822C1

TAPE

610 mm (24 in), Cut From 1954475C1

1шт.

28

135519A1

HOSE ASSY.

3330 mm (131-1/8 in), Discharge, Compressor To Cab, Includes: 29 - 32

1шт.

29

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

30

1250594C1

CORE

1шт.

31

122554A1

CAP

1шт.

32

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

33

135520A1

HOSE ASSY.

3267 mm (128-5/8 in), Suction, Compressor To Cab, Includes: 34 - 36

1шт.

34

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

35

1250594C1

CORE

1шт.

36

122553A1

CAP

1шт.

37

232948A1

SWITCH, A/C HIGH PRE

1шт.

38

R58601

HARNESS

High Pressure Switch and Compressor To Main Cab Harness

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

40

252765A1

ORNAMENTAL STRIP

65 mm (2-9/16 in), Used On Rear Engine Lift Brackets

1шт.
