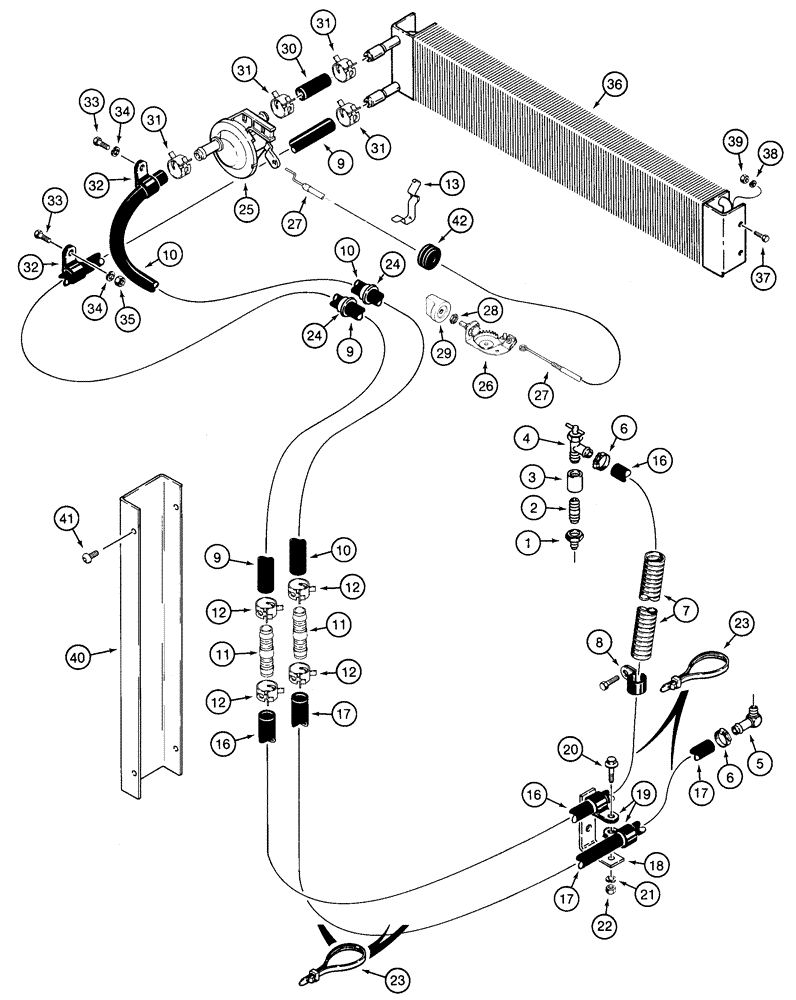

Запчасти Case 850H (09-33) - HEATER SYSTEM (09) - CHASSIS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1шт.

2

221-1165

JUNCTION

3/8 PT x 2-1/2

1шт.

3

221-1337

COUPLING,Pipe, 3/8" NPT

3/8

1шт.

4

301803R1

SHUT-OFF VALVE

Heater Supply Hose

1шт.

5

R50454

FITTING

90°

1шт.

6

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

7

S121023

CONDUIT

400 mm (15-3/4 in), Inlet Hose

1шт.

8

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

Use Existing Hardware

1шт.

9

R55243

HEATER HOSE,15.50 mm ID x 2300.00 mm

Inlet Supply To Heater Core

1шт.

10

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

Outlet, Return from Flow Control Valve

1шт.

11

1301342C1

FITTING

2шт.

12

1954736C1

HOSE CLAMP,#24

4шт.

13

1954626C1

SPRING CLIP

1шт.

16

R55245

HEATER HOSE,15.50 mm ID x 3700.00 mm

Cut from 97252CX, Inlet, Heater Supply from Engine

1шт.

17

R55244

HEATER HOSE,15.50 mm ID x 4500.00 mm

Cut from 97252CX, Outlet, Heater Return To Engine

1шт.

18

R51414

SUPPORT

Use Existing Hardware

1шт.

19

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

20

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

24

353-482

PLUG

1-3/16 ID

2шт.

25

1331087C1

HEATER VALVE

control

1шт.

1999504C1

CONTROL

Heater, Includes: 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

Control Assy, Order: 1999504C1

1шт.

27

NSS

NOT SOLD SEPARAT

Cable, Order: 1999504C1

1шт.

28

109311H

JAM NUT

7/16 NF

1шт.

29

1994720C1

KNOB

Heater Control

1шт.

30

1975733C1

HEATER HOSE,15.50 mm ID x 180.00 mm

Cut From: 97252CX, Flow Control Valve To Heater Core

1шт.

31

1954736C1

HOSE CLAMP,#24

4шт.

32

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

Heater supply and return hoses, Return hose clamp attaches to tapped block in cab

2шт.

33

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

F45204

HEAT-EXCHANGER

Heater

1шт.

37

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

38

492-11025

LOCK WASHER,1/4"

4шт.

39

425-104

NUT,1/4"-20, Cl 5

4шт.

40

1999374C1

COVER

Hose

1шт.

41

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

4шт.

42

248-1336

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

1шт.
