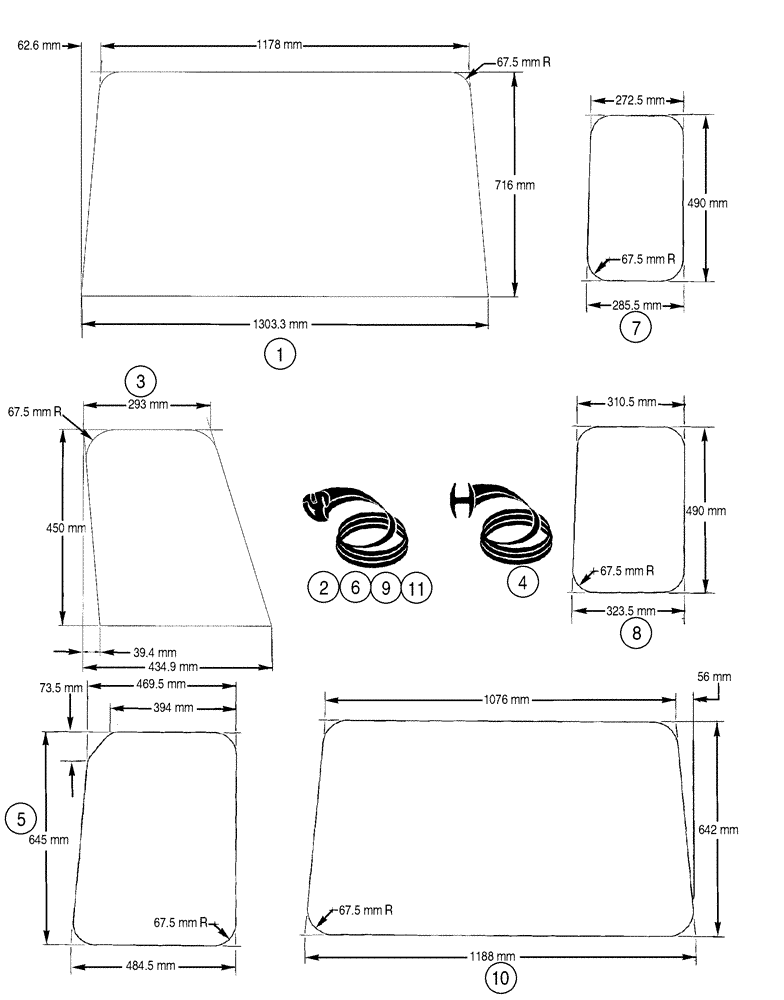

Запчасти Case 850H (09-29) - CAB - GLASS, METRIC DIMENSIONS (09) - CHASSIS

1

373289A1

GLASS

Front Windshield

1шт.

All Glass to be obtained from local source and must be 6 mm (7/32 in) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

2

373291A1

SEAL

5380 mm, Front Windshield, Cut From: S118468X

1шт.

3

373290A1

GLASS

Lower Front

2шт.

All Glass to be obtained from local source and must be 6 mm (7/32 in) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

4

373292A1

SEAL, GLASS

395 mm, Lower Front

2шт.

5

R51886

Side Windows

4шт.

All Glass to be obtained from local source and must be 6 mm (7/32 in) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

6

R51889

2135 mm, Side Windows, Cut From: S118468X

4шт.

7

R51884

Lower Door, Right Hand

1шт.

All Glass to be obtained from local source and must be 6 mm (7/32 in) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

8

R51885

Lower Door, Left Hand

1шт.

All Glass to be obtained from local source and must be 6 mm (7/32 in) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

9

R51707

1565 mm, Lower Door, Cut From: S118468X

2шт.

10

R51887

Rear Window

1шт.

All Glass to be obtained from local source and must be 6 mm (7/32 in) thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

11

R51890

3460 mm, Rear Window, Cut From: S118468X

1шт.
