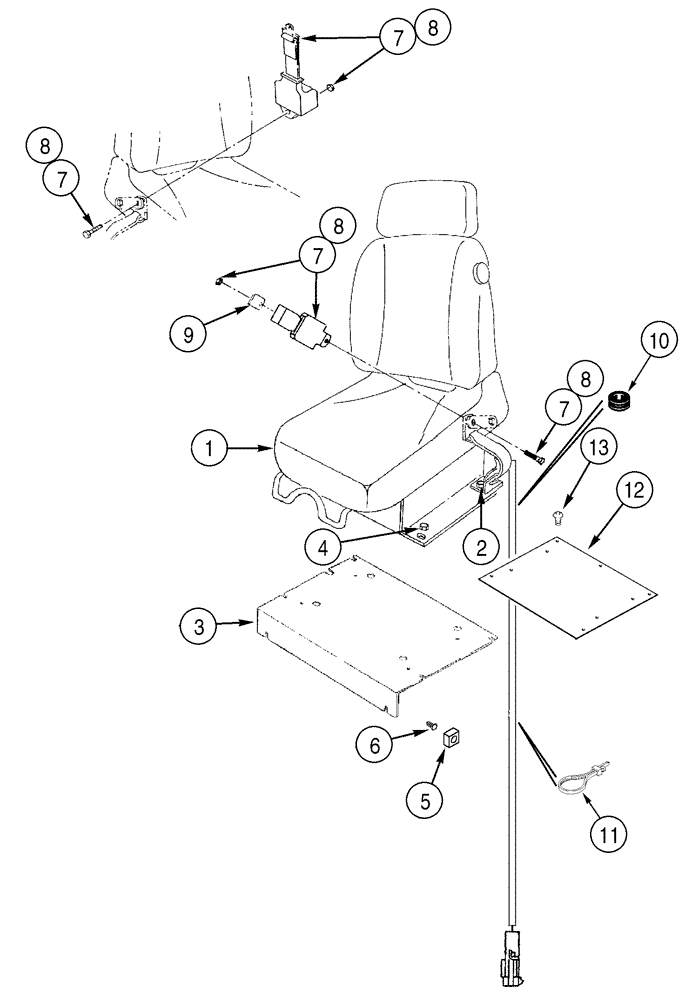

Запчасти Case 850H (09-19) - SEAT, MOUNTING - SEAT BELTS, AIR SUSPENSION (09) - CHASSIS

1

374536A1

SEAT

Air Suspension, See Figure 09-19A

1шт.

2

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

3

R58717

PLATE

1шт.

4

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

6шт.

5

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

4шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

7

R58418

SAFETY BELT ,3.00" W

Mounting Hardware Supplied with Seat Assembly

1шт.

8

D150377

SAFETY BELT ,2.00" W

Use with 9, Mounting Hardware Supplied with Seat Assembly

1шт.

9

D150393

BRACKET

Use With: 8

1шт.

10

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Cab Models

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.

12

382679A1

LARGE PLATE

PLATE, LARGE Seat Mount, Cab Models

1шт.

13

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

6шт.
