Запчасти Case 850H (09-18) - SEAT, MOUNTING - SEAT BELTS, MECHANICAL SUSPENSION (09) - CHASSIS

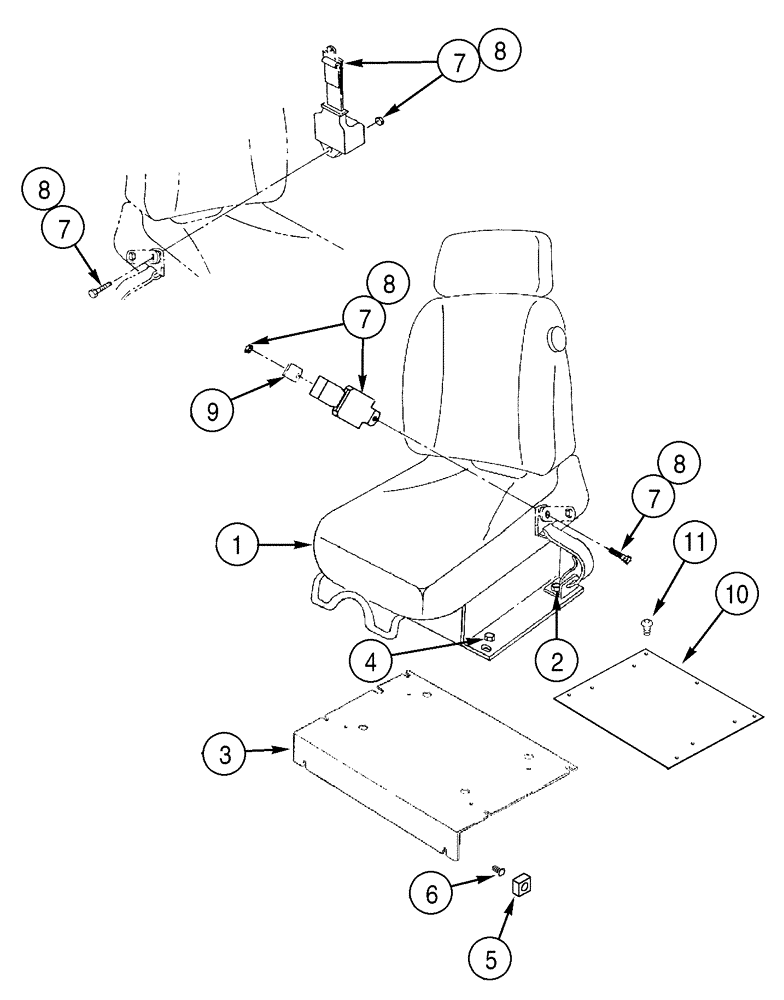

Схема запчастей Case 850H - (09-18) - SEAT, MOUNTING - SEAT BELTS, MECHANICAL SUSPENSION (09) - CHASSIS
7
8
7
8
2
8
6
11
7
3
9
7
10
4
5
8
1

Артикул

Название

Примечание

Количество

1

359121A1

SEAT

Mechanical Suspension, See Figure 09-18A

1шт.

2

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

3

R58717

PLATE

1шт.

4

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

6шт.

5

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

4шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

7

R58418

SAFETY BELT ,3.00" W

1шт.

8

D150377

SAFETY BELT ,2.00" W

Use with 9

1шт.

9

D150393

BRACKET

Use With 8

1шт.

10

382679A1

LARGE PLATE

PLATE, LARGE Seat Mount, Cab Models

1шт.

11

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

6шт.

Выбрано товаров: 11
