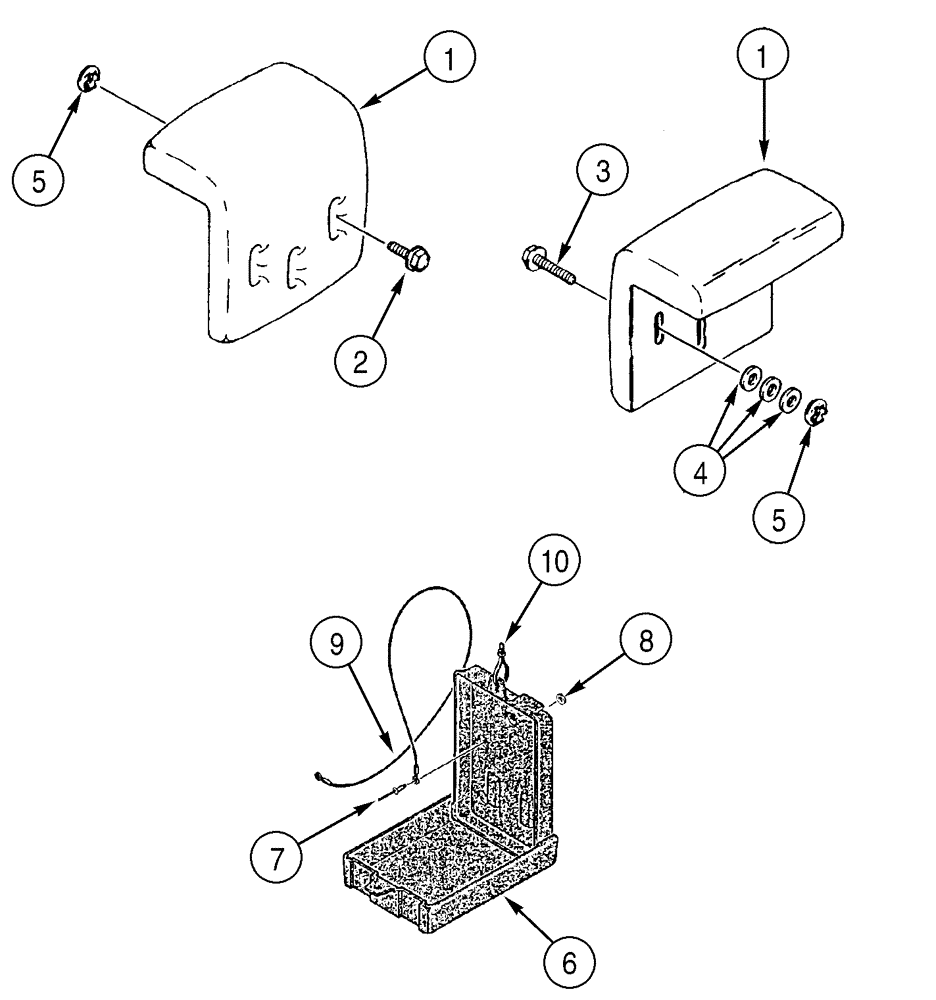

Запчасти Case 850H (09-17) - ARMREST - BOX, MANUAL (09) - CHASSIS

1

194738A1

ARMREST

2шт.

2

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

Armrest

3шт.

3

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

Armrest

3шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Used with 3, Armrest

9шт.

5

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

Armrest

6шт.

6

R46464

CASE

Manual Box

1шт.

7

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32, Manual Box

3шт.

8

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64"), Manual Box

3шт.

9

R46465

CABLE,36mm L

Manual Box

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Manual Box

1шт.
