Запчасти Case 850H (09-14) - HOOD - SHIELDS AND SUPPORTS (09) - CHASSIS

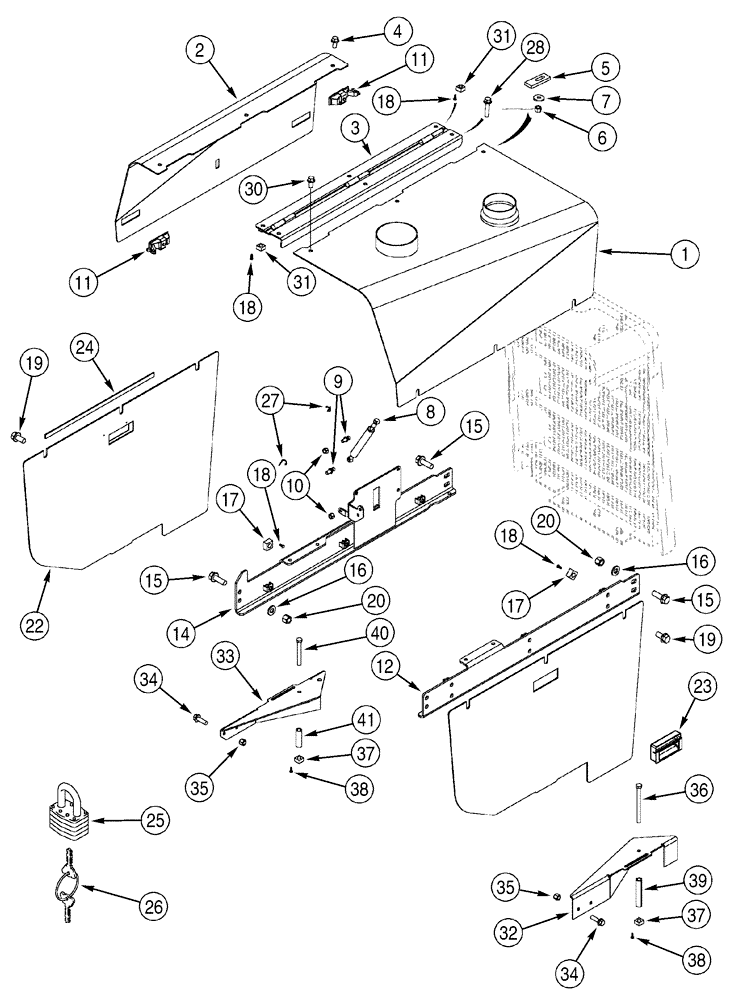

Схема запчастей Case 850H - (09-14) - HOOD - SHIELDS AND SUPPORTS (09) - CHASSIS
28
7
39
30
26
41
33
19
35
4
37
36
34
11
22
8
1
20
15
10
18
18
35
11
18
9
25
6
3
38
32
12
17
19
20
38
27
17
37
31
24
16
15
5
18
16
15
31
40
14
23
34
2

Артикул

Название

Примечание

Количество

1

372367A1

HOOD

Right Hand

1шт.

2

372383A1

HOOD

Left Hand

1шт.

3

358118A1

SUPPORT

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

4шт.

5

356567A1

PLATE

1шт.

6

231-1446

NUT,3/8" - 16, Gr 5

1шт.

7

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.

8

189787A2

SHOCK ABSORBER

1шт.

9

F44882

BALL

2шт.

10

231-1445

NUT,5/16"-18, GB

2шт.

11

356924A1

LATCH

Use Loctite No. 242

2шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.

12

358111A1

PLATE ASSY.

Right Hand

1шт.

14

358112A1

PLATE

Left Hand

1шт.

15

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1/2 x 1-1/2; 8

8шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

6шт.

17

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

9шт.

18

336371A1

PIN,4.88mm OD x 14.23mm L

14шт.

19

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

9шт.

20

231-1448

NUT,1/2"-13, GB

8шт.

21

359281A1

SHIELD

Side, Right Hand

1шт.

22

359282A1

SHIELD

Side, Left Hand

1шт.

23

328850A1

DOOR HANDLE

2шт.

24

R56995

PROTECTION STRIP

515 mm, Adhesive Back

1шт.

25

D93753

PADLOCK

Includes: 26

1шт.

26

R29555

KEY

For Master Padlock Only

2шт.

26

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

27

F44883

CLIP,DIN 71805 - S10

Spring

2шт.

28

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

1/2 x 1-1/4; 8

1шт.

30

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

Use Loctite No. 242

1шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.

31

224-2806

SQUARE NUT,Sq, 3/8"-16, G2, Hvy

3/8

5шт.

32

356965A1

COVER

Side Shield, Right Hand

1шт.

33

356963A1

COVER

Side Shield, Left Hand

1шт.

34

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

35

231-1446

NUT,3/8" - 16, Gr 5

2шт.

36

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8 x 4-1/2

1шт.

37

224-2806

SQUARE NUT,Sq, 3/8"-16, G2, Hvy

3/8

2шт.

38

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

39

116423A1

SPACER

1шт.

40

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

41

D82547

SPACER

1шт.

Выбрано товаров: 42
