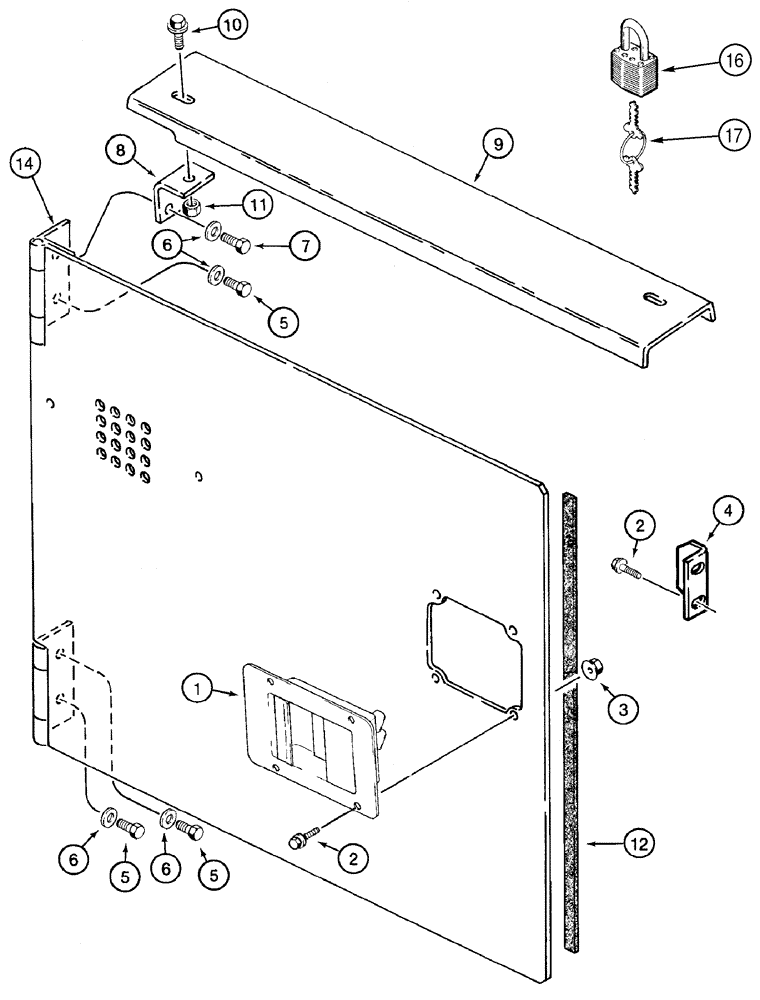

Запчасти Case 850H (09-13) - COVERS - REAR (09) - CHASSIS

1

R56221

LATCH

1шт.

2

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

3

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

4

R56397

LARGE PLATE

PLATE, LARGE catch

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

6

D41740

WASHER

3/8

5шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

R48725

SUPPORT

2шт.

9

R49363

COVER

Top

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

11

131-203

LOCK NUT,3/8"-16, GB, LH

3/8

2шт.

12

R56995

PROTECTION STRIP

Use With: 13

1шт.

13

345-44

ADHESIVE

1шт.

14

R55078

COVER

Rear, Includes: 15, Models Without Cab

1шт.

14

101194A1

COVER

Rear, Includes: 15, Models With Cab

1шт.

15

R50984

HINGE

Weld-On

2шт.

16

D93753

PADLOCK

Includes: 17

1шт.

17

R29555

KEY

For Master Padlock Only

2шт.

17

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.
