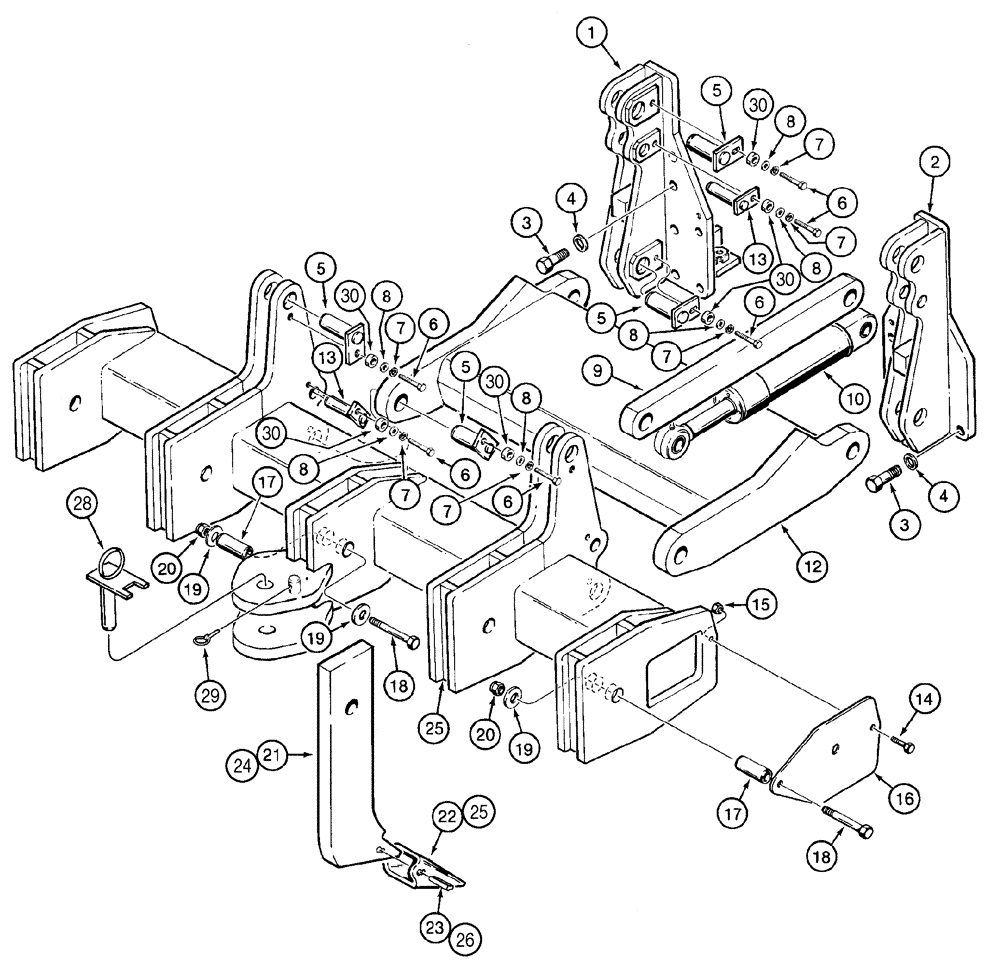

Запчасти Case 850H (09-05) - RIPPER (09) - CHASSIS

1

365101A1

BRACKET

Left Hand

1шт.

2

365102A1

BRACKET

Right Hand

1шт.

3

326-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

10шт.

4

D30196

WASHER

10шт.

5

309000A1

PIN

8шт.

6

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

12шт.

7

492-11062

BEARING WASHER,5/8"

12шт.

8

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

12шт.

9

R33779

ARM

Upper

2шт.

10

G101214

CYLINDER ASSY.

83 ID x 214 mm strk, Right Hand, Ripper, See figure 8-15

1шт.

11

G101215

CYLINDER ASSY.

83 ID x 214 mm strk, Left Hand, Ripper, See figure 8-15

1шт.

12

197899A1

ARM

Lower

1шт.

13

R43991

LARGE PIN

PIN, LARGE , Cylinder Mounting

4шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

15

231-1448

NUT,1/2"-13, GB

2шт.

16

R35460

LARGE PLATE

PLATE, LARGE

2шт.

17

R33773

PIN

Shank Mounting

3шт.

18

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

3шт.

19

95-31069

WASHER,0.69" ID x 2.38" OD x 0.17" Thk

4шт.

20

231-14410

NUT,5/8"-11, GB

3шт.

R46215

Optional With 258722A1, Consists of: 21 - 23, Not Available As An Assembly, Order Component Parts Below, Also Order 8-79763

3шт.

21

122236A1

SHANK, BUCKET TOOTH

1шт.

22

L55608

POINT

1шт.

23

D39448

PIN

1шт.

258722A1

Optional With R46215, Consists of: 24 - 26, Not Available As An Assembly, Order Component Parts Below, Also Order 8-79763

3шт.

24

258723A1

SHANK

1шт.

25

258719A1

TOOTH

1шт.

26

D39448

PIN

1шт.

27

R51734

BAR ASSY.

Tool, Includes Drawbar

1шт.

28

R33340

PIN

1шт.

29

A30338

PIN

1шт.

30

R43759

WASHER

12шт.
