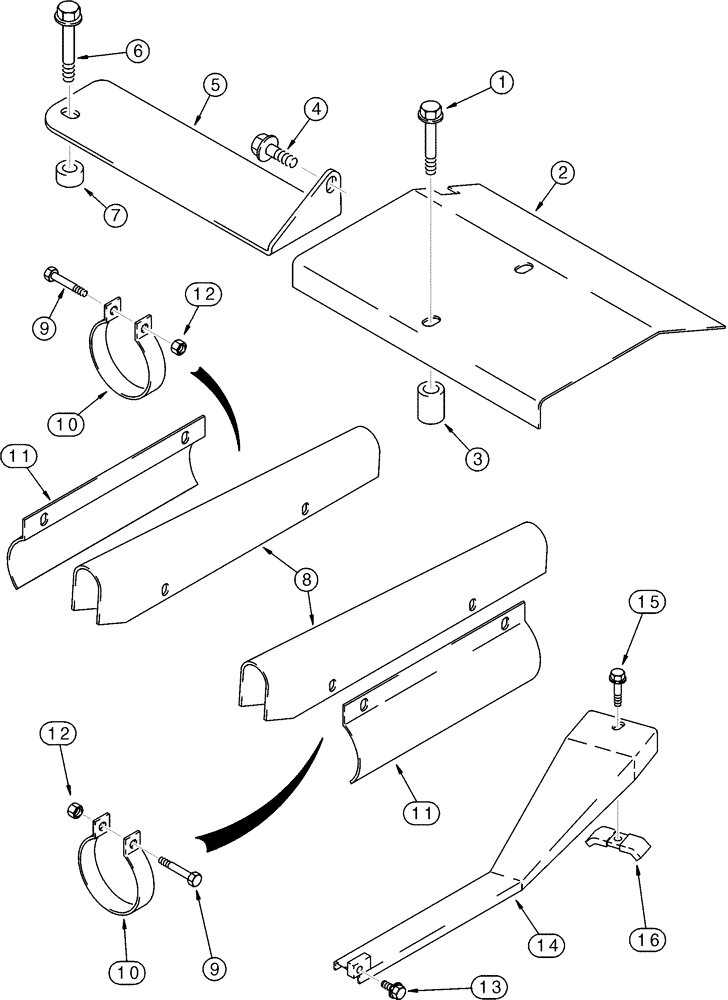

Запчасти Case 850H (09-04) - SHIELDS, DOZER HYDRAULICS (09) - CHASSIS

1

360-1040

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/2; 8

2шт.

2

120898A1

GUARD

Slide

1шт.

3

120929A1

SPACER

2шт.

4

360-1020

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4; 8

1шт.

5

121046A1

GUARD

Tilt Cylinder

1шт.

6

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2; 8

1шт.

7

123577A1

SPACER

1шт.

8

123602A1

GUARD

Hose, Angle Cylinder

2шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

10

132115A1

CLAMP

4шт.

11

123603A1

GUARD

Side, Angle Cylinder

2шт.

12

231-1446

NUT,3/8" - 16, Gr 5

4шт.

13

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

1шт.

14

124806A1

GUARD ASSY.

Tube, Tilt Cylinder

1шт.

15

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

1/2 x 1-1/4; 8

1шт.

16

D40236

CLAMP

1шт.
