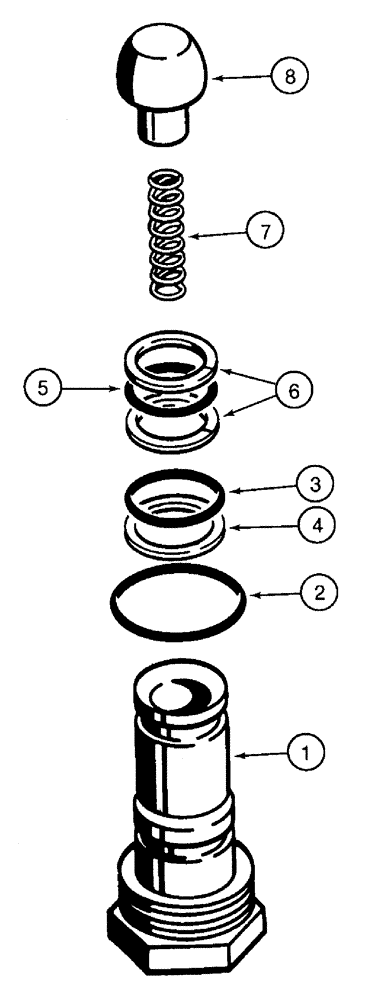

Запчасти Case 850H (08-24) - VALVE ASSY - CHECK, LOAD CHECK VALVE (08) - HYDRAULICS

D87307

VALVE

Load Check, Consists of: 1 - 8

6шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

6

D88725

BACK-UP RING

2шт.

7

H268730

SPRING

1шт.

8

D28576

VALVE POPPET

1шт.
