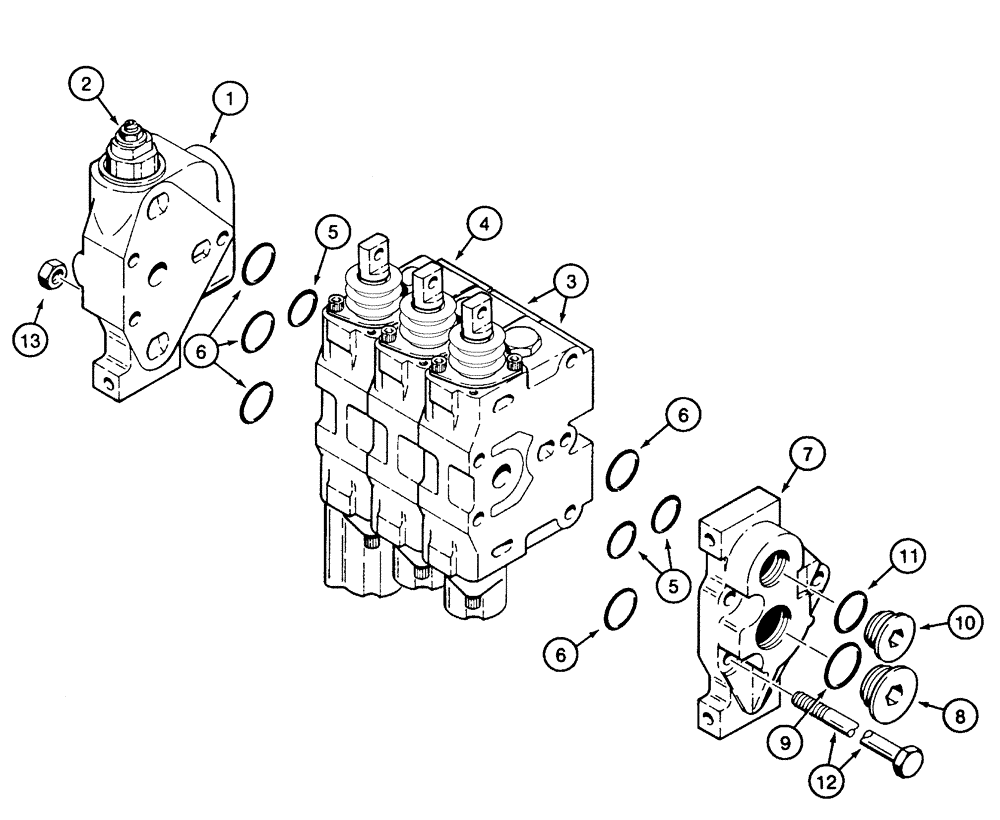

Запчасти Case 850H (08-19) - VALVE, CONTROL - 3 SECTIONS (08) - HYDRAULICS

336347A1

VALVE

3 Spool, Consists of: 1 - 13

1шт.

1

N8942

VALVE BLOCK

Inlet And Outlet

1шт.

2

N8191

VALVE

Main, See figure 8-21

1шт.

The pressure setting of this main relief valve may not be preset for your application. See the 850H service manual for the correct setting.

1шт.

3

357165A1

HYD VALVE SECTION

Tilt Control, Angle, See figure 8-23

2шт.

4

357161A1

HYD VALVE SECTION

Lift Control, See figure 8-22

1шт.

5

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

5шт.

6

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

11шт.

7

100825A1

COVER

Includes 8 - 11

1шт.

8

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Includes 9

1шт.

9

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Incl. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

3/8 x 8

3шт.

13

425-106

NUT,3/8"-16, Cl 5

3шт.
