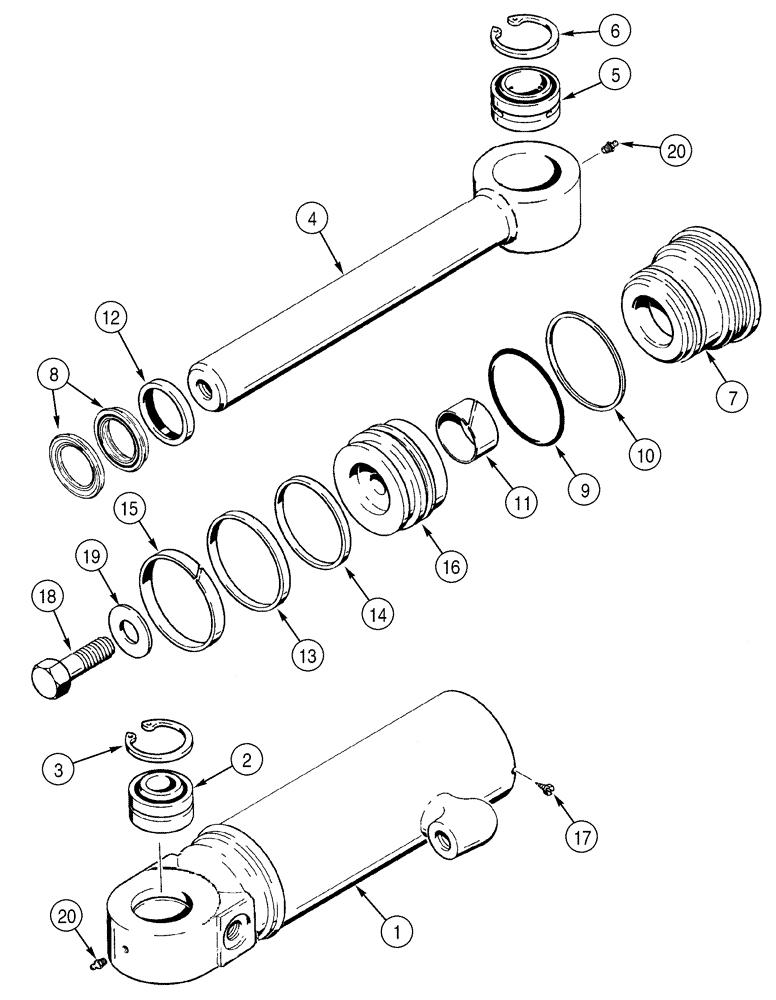

Запчасти Case 850H (08-13) - CYLINDER ASSY - TILT (08) - HYDRAULICS

117511A2

CYLINDER

89 ID x 148 mm strk, Tilt, Consists of: 1 - 20

1шт.

412357A1R

REMAN-HYD CYLINDER

850H, Reman for New PN 117511A2

1шт.

412357A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

355750A1

BARREL,88.77 mm ID, 380.9 mm Length

Includes: 2, 3

1шт.

2

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

1шт.

3

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

4

117507A2

ROD ASSY.

piston, 45 mm (1-3/4 inch) dia, Includes: 5, 6

1шт.

5

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

1шт.

6

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

7

355529A1

GLAND

1шт.

1543266C1

SEAL KIT

Consists of: 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

Kit, Seal, Order 1543266C1

1шт.

9

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

11

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

12

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

13

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

14

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

15

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

16

1986982C1

PISTON

cylinder

1шт.

17

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
