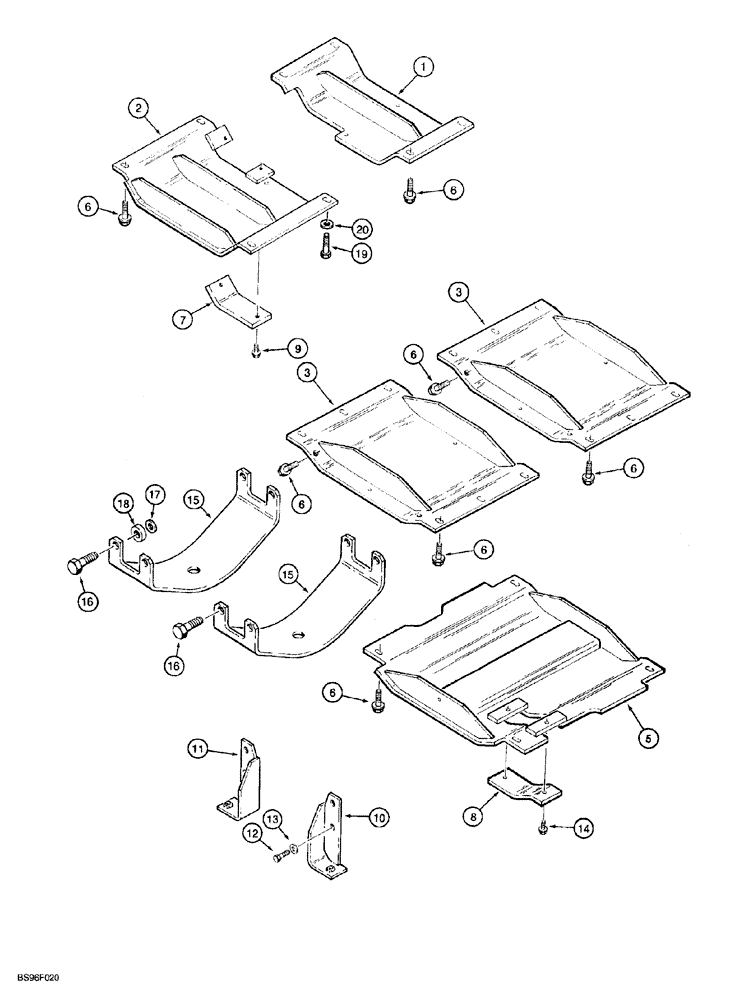

Запчасти Case 850G (9-16) - UNDERCARRIAGE GUARDS (04) - UNDERCARRIAGE

1

R50231

RUNNER

GUARD engine oil pan, front

1шт.

2

R50233

GUARD

engine oil pan, rear

1шт.

3

128709A1

GUARD ASSY.

power train, front and rear

2шт.

5

R46834

GUARD

transmission

1шт.

6

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

hex flange, 5/8 NC x 2 inch, grade 8

26шт.

7

R48345

COVER

engine oil drain

1шт.

8

R49641

COVER

transmission oil drain

1шт.

9

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

10

R45020

BRACKET

transmission guard mounting, right-hand

1шт.

11

R45022

BRACKET

transmission guard mounting, left-hand

1шт.

12

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

hex, 3/4 NC x 1-1/2 inch

4шт.

13

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

4шт.

14

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

15

R57673

GUARD

final drive

2шт.

16

326-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

Use with blue Loctite No. 242, see below

8шт.

17

D30196

WASHER

flat, special, 1 inch

8шт.

18

R57674

SPACER

final drive guard, use with rear guard mounting bolts only

4шт.

19

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

2шт.

20

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

2шт.

B17577

LOCTITE

blue, No. 242, 6 ml tube

1шт.
