Запчасти Case 850G (5-14) - TRACK SHOES, TRACK SHOES WITH 9/16 INCH HARDWARE SINGLE GROUSER - CLOSED (04) - UNDERCARRIAGE

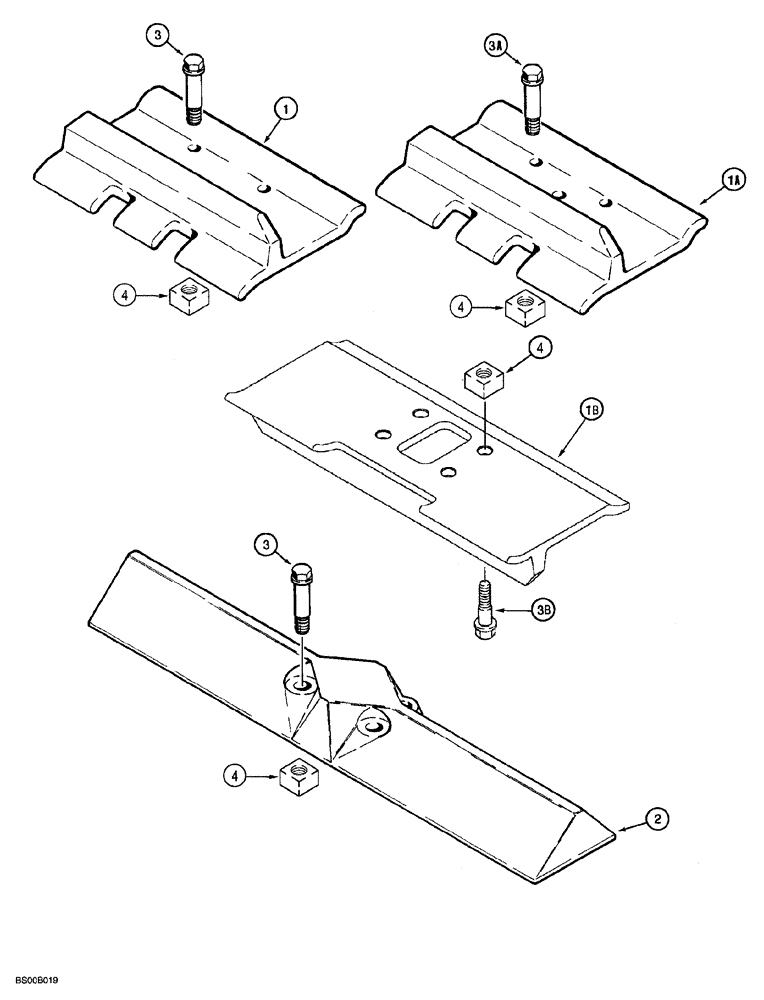

Схема запчастей Case 850G - (5-14) - TRACK SHOES, TRACK SHOES WITH 9/16 INCH HARDWARE SINGLE GROUSER - CLOSED (04) - UNDERCARRIAGE
3
3a
4
3b
4
1
3
4
1b
4
2
1a

Артикул

Название

Примечание

Количество

1

178445A1

TRACK SHOE

457 mm (18 inch), Replaces: R56739

76шт.

9/16 inch hardware, single grouser - closed

1шт.

1

178449A1

TRACK SHOE

610 mm (24 inch), Replaces: R56742

76шт.

9/16 inch hardware, single grouser - closed

1шт.

1

178450A1

TRACK SHOE

711 mm (28 inch), Replaces: 144685A1

76шт.

9/16 inch hardware, single grouser - closed

1шт.

1

R56743

TRACK SHOE

737 mm (29 inch)

76шт.

9/16 inch hardware, single grouser - closed

1шт.

2

R49919

TRACK SHOE

737 mm (29 inch), no longer available, order 144688A1

76шт.

Single Grouser - self-cleaning

1шт.

2

144688A1

SHOE (ASSY)

track, 711 mm (28 inch)

76шт.

Single Grouser - self-cleaning

1шт.

3

R44189

BOLT

special, 83 mm (3-1/4 inch) long, 304 used with R56512 chain assembly, 296 used with 129022A chain assembly

1шт.

Single Grouser - self-cleaning

1шт.

3

135817A1

BOLT,Spher Hex, 9/16" - 18 x 104.20mm

special, 104 mm (4-1/8 inch) long, used on master link with 129022A1 chain assembly

2шт.

Single Grouser - self-cleaning

1шт.

3

135818A1

BOLT,Spher Hex, 9/16" - 18 x 116.20mm

special, 116 mm (4-9/16 inch) long, used on master link with 129022A1 chain assembly

2шт.

Single Grouser - self-cleaning

1шт.

1a

295181A1

TRACK SHOE

457 mm (18 inch)

76шт.

5/8 inch hardware, Single Grouser - closed

1шт.

1a

295182A1

SHOE

track, 610 mm (24 inch)

76шт.

5/8 inch hardware, Single Grouser - closed

1шт.

1a

295183A1

SHOE

track, 711 mm (28 inch)

76шт.

5/8 inch hardware, Single Grouser - closed

1шт.

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

hex, special, 5/8 NF x 2-1/8 inch, not shown

296шт.

5/8 inch hardware, Single Grouser - closed

1шт.

3a

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

special, 5/8 NF x 3-1/4 inch

8шт.

5/8 inch hardware, Single Grouser - closed

1шт.

4

R25688

SQUARE NUT

square, special, 5/8 inch NF

296шт.

5/8 inch hardware, Single Grouser - closed

1шт.

1b

303471A1

TRACK SHOE

457 mm (18 inch)

38шт.

Single Grouser - open

1шт.

3b

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

hex, special, 5/8 NF x 2-1/8 inch

148шт.

Single Grouser - open

1шт.

4

R25688

SQUARE NUT

square, special, 5/8 inch NF

148шт.

Single Grouser - open

1шт.

2

295190A1

TRACK SHOE

711 mm (28 inch)

76шт.

Single Grouser - self-cleaning

1шт.

3

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

special, 5/8 NF x 3-1/4 inch

296шт.

Single Grouser - self-cleaning

1шт.

3

299134A1

BOLT,5/8" - 18 x 4 1/2"

special, 114 mm (4-1/2 inch) long

4шт.

Single Grouser - self-cleaning

1шт.

4

R25688

SQUARE NUT

square, special, 5/8 inch NF

296шт.

Single Grouser - self-cleaning

1шт.

Выбрано товаров: 44
