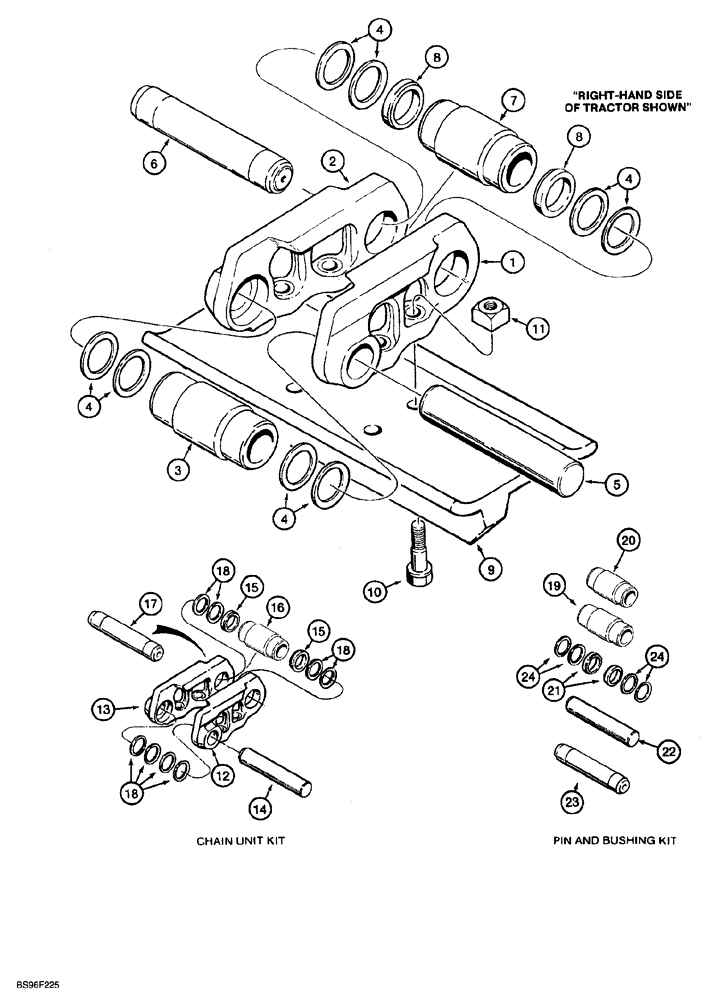

Запчасти Case 850G (5-12) - SEALED TRACK CHAIN (OPTIONAL) WITH 9/16 INCH MOUNTING HARDWARE (04) - UNDERCARRIAGE

295101A1

ASSEMBLY

CHAIN track, 38 unit, 18 inch, Includes: Ref. 1 - 8

2шт.

R56723

CHAIN (CE)

track

2шт.

1

R56490

LINK

track, right-hand

38шт.

2

R56489

LINK

track, left-hand

38шт.

3

R56517

BUSHING

PIN standard

37шт.

4

R50211

WASHER

SPRING Belleville, bushing

152шт.

5

R49792

PIN,33.48mm OD x 183.5mm L

standard

37шт.

6

R54281

PIN,33.41mm OD x 183.5mm L

master

1шт.

7

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

PIN master

1шт.

8

R50210

SPACER

master

2шт.

9

178445A1

TRACK SHOE

457 mm (18 inch), see figure 5-14 for track shoe options

76шт.

10

D48004

FLANGE BOLT

hex, special, 9/16 NF x 2-1/32 inch

304шт.

11

R57375

SQUARE NUT

square, special, 9/16 NF

304шт.

R56022

CHAIN (CE)

KIT unit, Includes: Ref. 12 - 18

1шт.

Chain Unit Kit (includes standard and master track pins)

1шт.

12

R56490

LINK

track, right-hand

1шт.

Chain Unit Kit (includes standard and master track pins)

1шт.

13

R56489

LINK

track, left-hand

1шт.

Chain Unit Kit (includes standard and master track pins)

1шт.

14

R49792

PIN,33.48mm OD x 183.5mm L

standard

2шт.

Chain Unit Kit (includes standard and master track pins)

1шт.

15

R50210

SPACER

master, master pin

2шт.

Chain Unit Kit (includes standard and master track pins)

1шт.

16

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

PIN master

1шт.

Chain Unit Kit (includes standard and master track pins)

1шт.

17

R54281

PIN,33.41mm OD x 183.5mm L

master

1шт.

Chain Unit Kit (includes standard and master track pins)

1шт.

18

R50211

WASHER

SPRING Belleville, bushing

8шт.

Chain Unit Kit (includes standard and master track pins)

1шт.

R56023

KIT

pin and bushing, Includes: Ref. 19 - 24

1шт.

Pin and Bushing Kit (services complete track chain, both sides of tractor)

1шт.

19

R56517

BUSHING

standard pin

74шт.

Pin and Bushing Kit (services complete track chain, both sides of tractor)

1шт.

20

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

master pin

2шт.

Pin and Bushing Kit (services complete track chain, both sides of tractor)

1шт.

21

R50210

SPACER

master

4шт.

Pin and Bushing Kit (services complete track chain, both sides of tractor)

1шт.

22

R49792

PIN,33.48mm OD x 183.5mm L

standard

74шт.

Pin and Bushing Kit (services complete track chain, both sides of tractor)

1шт.

23

R54281

PIN,33.41mm OD x 183.5mm L

master

2шт.

Pin and Bushing Kit (services complete track chain, both sides of tractor)

1шт.

24

R50211

WASHER

SPRING Belleville, bushing

304шт.

Pin and Bushing Kit (services complete track chain, both sides of tractor)

1шт.
