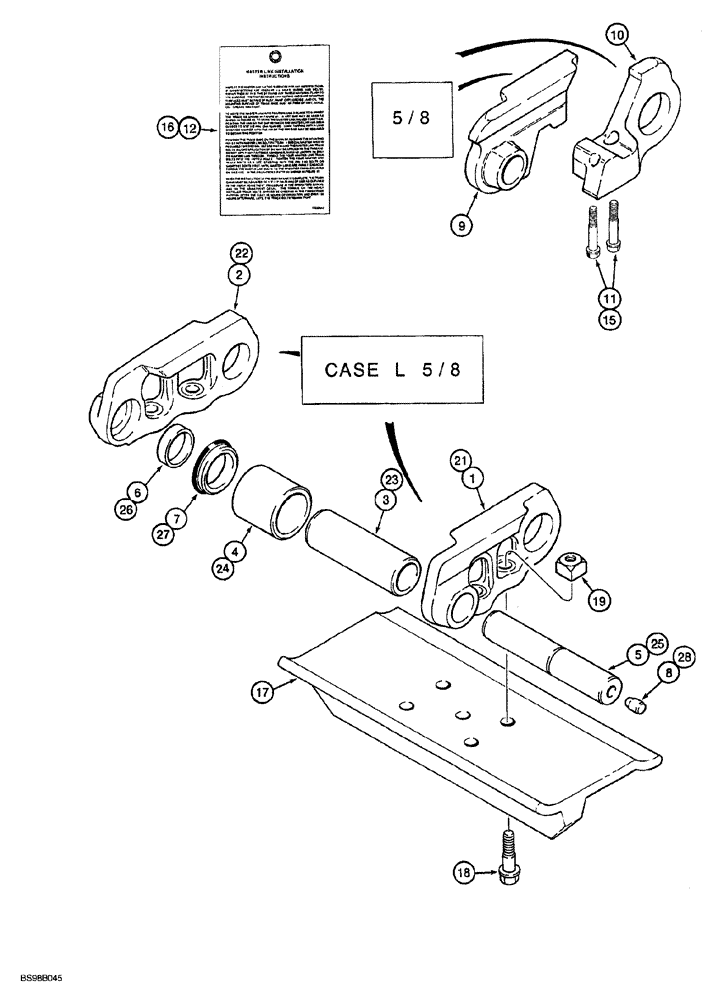

Запчасти Case 850G (5-11I) - EXTENDED LIFE TRACK CHAIN (WITH 5/8 INCH HARDWARE) (04) - UNDERCARRIAGE

295201A1

CHAIN (CE)

track, 38 unit, extended life, also order 178328A2 instruction tag, Includes: Ref. 1 - 16

2шт.

1

295178A1

LINK

track, right-hand

37шт.

2

295177A1

LINK

track, left-hand

37шт.

3

114402A1

BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L

track pin

38шт.

4

114400A1

BUSHING

rotating

38шт.

5

R51131

PIN,33.48mm OD x 183.5mm L

track

38шт.

6

R51132

SPACER

SEAL

76шт.

7

R50830

OIL SEAL

track pin

76шт.

8

R50441

PLUG

track pin

38шт.

299237A1

KIT

master link, right-hand, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, right-hand

1шт.

10

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, right-hand

1шт.

11

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

special, 5/8 NF x 3-1/4 inch

2шт.

12

178328A3

TAG

installation instructions, Replaces: 178328A2

1шт.

299234A1

KIT

master link, left-hand, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, left-hand, not shown

1шт.

14

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, left-hand, not shown

1шт.

15

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

special, 5/8 NF x 3-1/4 inch

2шт.

16

178328A3

TAG

installation instructions, Replaces: 178328A2

1шт.

17

REF

INSTRUCTION

SHOE track, see figure 5-14 for track shoe options

76шт.

18

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

hex, special, 5/8 NF x 2-1/8 inch

296шт.

19

R25688

SQUARE NUT

square, special, 5/8 inch NF

296шт.

20

345-140

SEALANT

rubber, Scotch Grip No 847, 1 pint can, not shown

1шт.

304484A1

KIT

link, CELT, includes instruction sheet, Includes: Ref. 21 - 28

1шт.

Link Kit for extended life track chain.

1шт.

304483A1

ASSEMBLY link, track, Includes: Ref. 21 - 24

1шт.

Link Kit for extended life track chain.

1шт.

21

295178A1

LINK

track, right-hand

1шт.

Link Kit for extended life track chain.

1шт.

22

295177A1

LINK

track, left-hand

1шт.

Link Kit for extended life track chain.

1шт.

23

114402A1

BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L

track, pin

1шт.

Link Kit for extended life track chain.

1шт.

24

114400A1

BUSHING

rotating

1шт.

Link Kit for extended life track chain.

1шт.

25

R51131

PIN,33.48mm OD x 183.5mm L

track

2шт.

Link Kit for extended life track chain.

1шт.

26

R51132

SPACER

SEAL

4шт.

Link Kit for extended life track chain.

1шт.

27

R50830

OIL SEAL

track pin

4шт.

Link Kit for extended life track chain.

1шт.

28

R50441

PLUG

track pin

2шт.

Link Kit for extended life track chain.

1шт.
