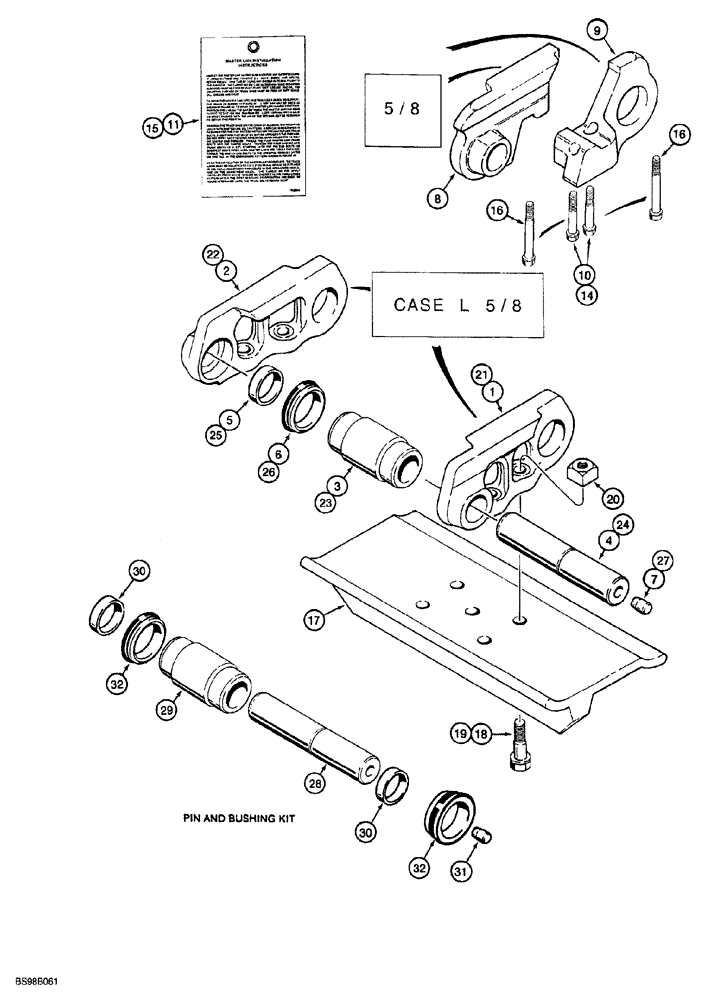

Запчасти Case 850G (5-11E) - CASE LUBRICATED TRACK CHAIN (WITH 5/8 INCH MOUNTING HARDWARE) (04) - UNDERCARRIAGE

295202A1

CHAIN (CE)

track, 38 unit, also order 178328A3 instruction tag, Includes: Ref. 1 - 15

2шт.

1

295178A1

LINK

track, right-hand

37шт.

2

295177A1

LINK

track, left-hand

37шт.

3

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

track pin

38шт.

4

R51131

PIN,33.48mm OD x 183.5mm L

track

38шт.

5

R51132

SPACER

SEAL

76шт.

6

R50830

OIL SEAL

track pin

76шт.

7

R50441

PLUG

track pin

38шт.

299237A1

KIT

LINK master, right-hand, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, right-hand

1шт.

9

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, right-hand

1шт.

10

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

special, 5/8 NF x 3-1/4 inch

2шт.

11

178328A3

TAG

INSTRUCTIONS installation, Replaces: 178328A2

1шт.

299234A1

KIT

LINK master, left-hand, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, left-hand, not shown

1шт.

13

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, left-hand, not shown

1шт.

14

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

special, 5/8 NF x 3-1/4 inch

2шт.

15

178328A3

TAG

installation instructions, Replaces: 178328A2

1шт.

16

299134A1

BOLT,5/8" - 18 x 4 1/2"

special, 114 mm (4-1/2 inch) long, extended master link, used with self-cleaning track shoes only

4шт.

17

REF

INSTRUCTION

SHOE track, see figure 5-14 for track shoe options

76шт.

18

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

hex, special, standard, 5/8 NF x 2-1/8 inch

296шт.

19

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

special, 5/8 NF x 3-1/4 inch, used with self-cleaning track shoes only

296шт.

20

R25688

SQUARE NUT

square, special, 5/8 inch NF, not used on master link bolts

296шт.

300215A1

KIT

LINK CLT, includes instruction sheet

1шт.

Link Kit for lubricated track chain.

1шт.

302847A1

LINK ASSY.

track, Includes: Ref. 21 - 27

1шт.

Link Kit for lubricated track chain.

1шт.

21

295178A1

LINK

track, right-hand, Includes: Ref. 21 - 23

1шт.

Link Kit for lubricated track chain.

1шт.

22

295177A1

LINK

track, left-hand

1шт.

Link Kit for lubricated track chain.

1шт.

23

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

track pin

1шт.

Link Kit for lubricated track chain.

1шт.

24

R51131

PIN,33.48mm OD x 183.5mm L

track

2шт.

Link Kit for lubricated track chain.

1шт.

25

R51132

SPACER

SEAL

4шт.

Link Kit for lubricated track chain.

1шт.

26

R50830

OIL SEAL

track pin

4шт.

Link Kit for lubricated track chain.

1шт.

27

R50441

PLUG

track pin

2шт.

Link Kit for lubricated track chain.

1шт.

R56024

SET

KIT pin and bushing, includes instruction sheet, services complete track chain for both sides of tractor, Includes: Ref. 28 - 33

1шт.

Pin and Bushing Kit for lubricated track.

1шт.

28

R51131

PIN,33.48mm OD x 183.5mm L

track

76шт.

Pin and Bushing Kit for lubricated track.

1шт.

29

R56515

BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L

track pin

76шт.

Pin and Bushing Kit for lubricated track.

1шт.

30

R51132

SPACER

SEAL

152шт.

Pin and Bushing Kit for lubricated track.

1шт.

31

R50441

PLUG

track pin

76шт.

Pin and Bushing Kit for lubricated track.

1шт.

32

R50830

OIL SEAL

track pin

152шт.

Pin and Bushing Kit for lubricated track.

1шт.

33

345-140

SEALANT

rubber, Scotch Grip No 847, 1 pint can, not shown

1шт.

Pin and Bushing Kit for lubricated track.

1шт.
