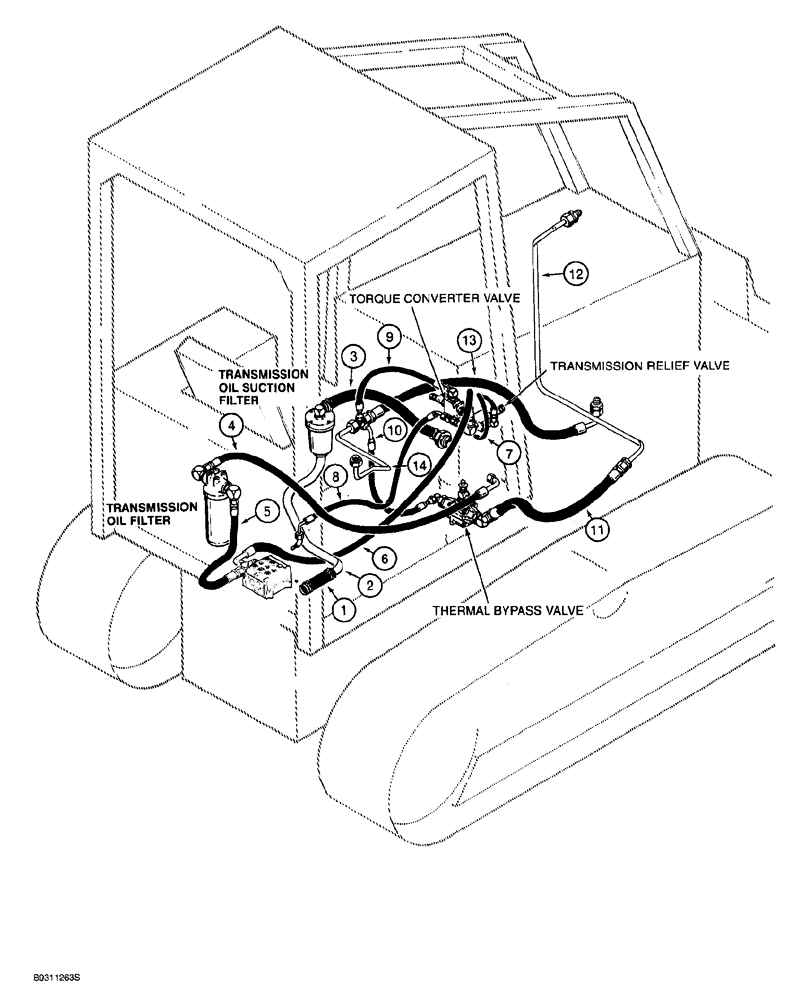

Запчасти Case 850G (1-10) - PICTORIAL INDEX - CRAWLER HYDRAULIC CIRCUITS, TRANSMISSION SUPPLY, RETURN, AND COOLING LINES (00) - PICTORIAL INDEX

1

Suction Hose at Transmission

6-29шт.

2

Suction Tube from Transmission to Suction Filter

6-29шт.

3

Suction Hose from Filter to Torque Converter

6-29шт.

4

Supply Hose at Torque, Serial Range: Converter-Filter

6-27шт.

5

Supply Hose at Transmission Control Valve from Filter

6-27шт.

6

Supply Hose at Relief Valve from Transmission Control Valve

6-27шт.

7

Supply Hose at Converter Relief Valve from Relief Valve

6-27шт.

8

Return Hose from Converter Relief, Serial Range: Valve-Transmission

6-31шт.

9

Cooling Circuit Hose at Converter Relief Valve

6-31шт.

10

Intermediate Cooling Circuit Hose at Thermal Bypass Valve

6-31шт.

11

Cooling Circuit Hose from Thermal Bypass Valve to Tube to Oil Cooler

6-31шт.

12

Cooling Circuit Tube to Upper Port of Oil Cooler

6-31шт.

13

Return Hose from Oil, Serial Range: Cooler-Transmission

6-31шт.

14

Return Tube from Oil Cooler, Serial Range: Hose-Transmission

6-31шт.
