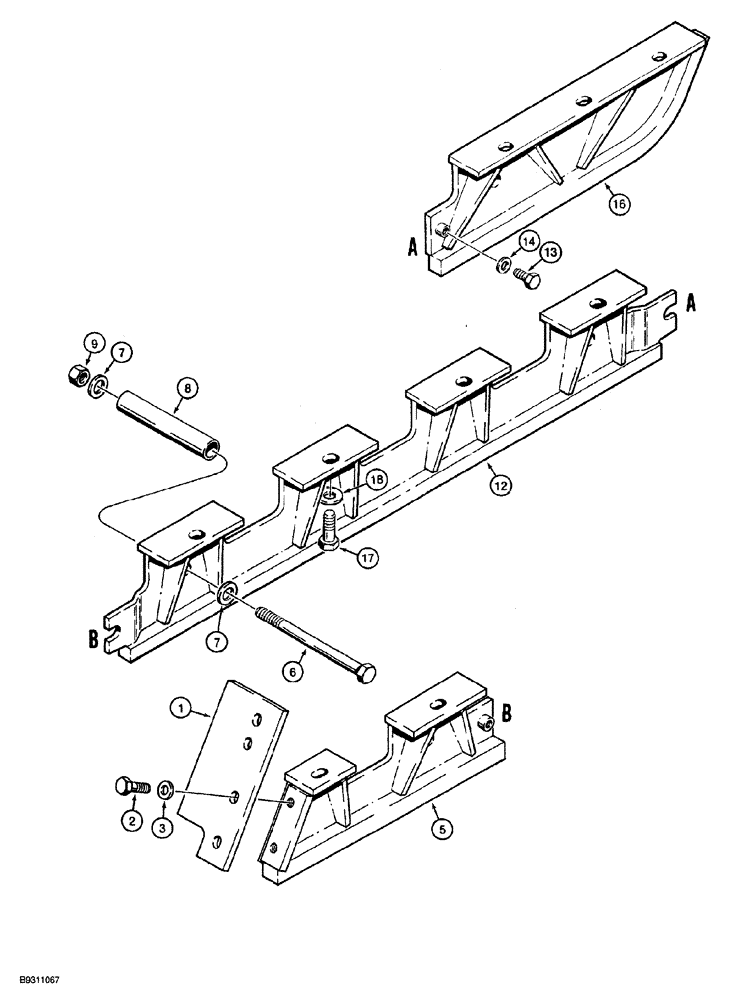

Запчасти Case 850G (5-08) - TRACK GUARDS (04) - UNDERCARRIAGE

1

R56637

COVER

sprocket, rear, flat

4шт.

2

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

16шт.

3

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

flat, hardened, 21/32 x 1-5/16 x 5/32 inch

16шт.

4

R56633

GUARD

TRACK both, rear, left-hand, both tracks, not shown

2шт.

5

R56646

GUARD

rear, right-hand, both tracks

2шт.

6

413-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

8шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

16шт.

8

D35698

SPACER

track guards

8шт.

9

231-41112

LOCK NUT,3/4"-10, GB

8шт.

11

R55833

GUARD

center, left-hand, both tracks, not shown

2шт.

12

R55832

GUARD

center, right-hand, both tracks

2шт.

13

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

14

D64050

WASHER

flat, special, 1/2 inch

8шт.

15

R56620

GUARD

front, left-hand, not shown, both tracks

2шт.

16

R56629

GUARD

front, right-hand, both tracks

2шт.

17

113-2704

LOCK BOLT,Locking, 3/4"-10 x 1 1/2", G5, Full Thd

36шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

36шт.
