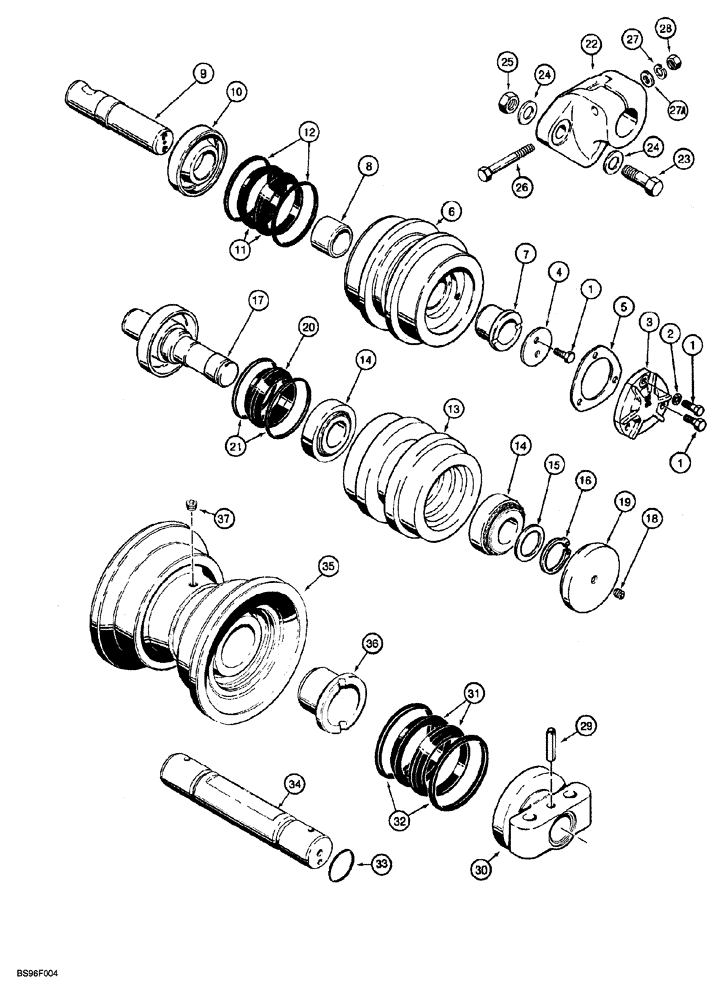

Запчасти Case 850G (5-06) - TRACK ROLLER ASSEMBLIES AND CARRIER ROLLER MOUNTING (04) - UNDERCARRIAGE

R33965

ROLLER

ASSEMBLY, carrier, models without extended life track, Includes: Ref. 1 - 12, no longer available, order 198941A1, Ref. 13 - 21

2шт.

1

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

5шт.

2

D32117

COPPER WASHER

1шт.

3

R33959

CYLINDER END CAP

ROLLER carrier

1шт.

4

R33960

PLATE

RETAINER

1шт.

5

R33964

GASKET

COVER

1шт.

R33967

CARRIER

ASSEMBLY hub, carrier roller, no longer available, order 198941A1 roller assembly, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

HUB roller

1шт.

7

R33951

BUSHING

HUB with flange

1шт.

8

R33958

BUSHING

ROLLER

1шт.

R33969

SHAFT

ASSEMBLY carrier roller, no longer available, order 198941A1 roller assembly, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT carrier roller

1шт.

10

R33962

RETAINER

SEAL

1шт.

R33607

SEAL

ASSEMBLY face, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL rubber

2шт.

12

N6847

O-RING,75mm ID x 8mm Width

SEAL face

2шт.

198941A1

ROLLER ASSY.

CARRIER models with extended life track, Includes: Ref. 13 - 21

2шт.

13

NSS

NOT SOLD SEPARAT

HUB carrier roller

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING tapered roller

2шт.

15

NSS

NOT SOLD SEPARAT

SPACER roller

1шт.

16

NSS

NOT SOLD SEPARAT

RING external heavy retaining, No. 40

1шт.

17

NSS

NOT SOLD SEPARAT

SHAFT carrier roller

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG hex socket

1шт.

19

NSS

NOT SOLD SEPARAT

COVER end, use with No. 601 Loctite, Ref. 28A, shown below

1шт.

20

NSS

NOT SOLD SEPARAT

ASSEMBLY seal, face, Includes: Ref. 21

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL face

2шт.

22

D45485

BRACKET

carrier roller

2шт.

23

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

4шт.

24

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

8шт.

25

231-41112

LOCK NUT,3/4"-10, GB

4шт.

26

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

hex, 1/2 NC x 4-1/4 inch, grade 8

2шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

If used

2шт.

27a

R24323

WASHER

flat, special

2шт.

28

231-1448

NUT,1/2"-13, GB

hex, NC, Replaces 425-108

2шт.

28a

B17069

LOCTITE

Hi Strength, No 601, 2 oz (50 ml), not shown

1шт.

R56593

SHIFTER ROLLER

ASSEMBLY track

10шт.

29

R33563

ROLL PIN

roll, shaft retaining

2шт.

R56593 Track Roller Assembly

1шт.

30

R33560

BUSHING

CAP track roller, with mounting block

2шт.

R56593 Track Roller Assembly

1шт.

S113075

SEAL

FACE

2шт.

R56593 Track Roller Assembly

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL rubber

2шт.

R56593 Track Roller Assembly

1шт.

32

N6846

O-RING,75.7mm ID x 9.5mm Width

SEAL oil

2шт.

R56593 Track Roller Assembly

1шт.

33

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

R56593 Track Roller Assembly

1шт.

34

R33561

SHAFT

ROLLER

1шт.

R56593 Track Roller Assembly

1шт.

R56594

HUB ASSY.

ASSEMBLY roller, no longer available, order R56593

1шт.

R56593 Track Roller Assembly

1шт.

35

NSS

NOT SOLD SEPARAT

HUB roller

1шт.

R56593 Track Roller Assembly

1шт.

36

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

FLANGED

2шт.

R56593 Track Roller Assembly

1шт.

37

R33557

PLUG

SOCKET hex

1шт.

R56593 Track Roller Assembly

1шт.
