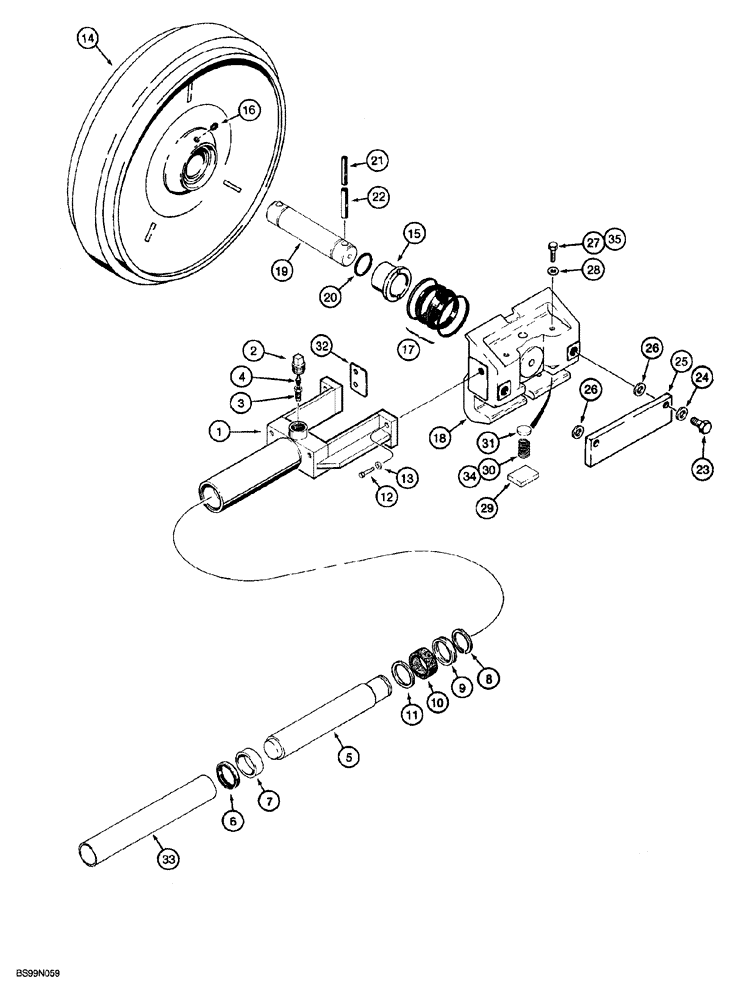

Запчасти Case 850G (5-04) - TRACK ADJUSTER AND IDLER ASSEMBLIES (04) - UNDERCARRIAGE

129162A1

SHOCK ABSORBER

ASSEMBLY adjuster, Includes: Ref. 1 - 11

2шт.

1

R31976

YOKE

UNIVERSAL JOINT YOKE track adjuster

1шт.

2

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

Replaces 217-532

1шт.

3

D35287

CHECK VALVE,5/8" - 18

check, track adjuster

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

5

129161A1

PISTON

ROD, 316 mm (12-7/16 inch) long

1шт.

6

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

piston rod wiper

1шт.

7

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

wear

1шт.

8

101-11212

SNAP RING,#212, 1.997", Ext

Rod

1шт.

9

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

U-cup, rod

1шт.

10

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

backup

1шт.

11

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

backup, seal

1шт.

12

113-2448

LOCK BOLT,Locking, 1/2"-13 x 1 1/2", G8

4шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

103384A1

FRONT IDLER

ASSEMBLY track, Includes: Ref. 14 - 22

2шт.

14

NSS

NOT SOLD SEPARAT

WHEEL idler

1шт.

15

103391A1

BUSHING,60.26mm ID x 68mm OD x 46mm L

idler hub

2шт.

16

R33557

PLUG

hex socket

1шт.

17

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

ASSEMBLY seal, face, idler, includes two metal rings and two seals, idler

2шт.

18

R58799

SUPPORT

idler assembly

2шт.

19

103390A1

SHAFT

ASSEMBLY idler

1шт.

20

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

21

838-51090

PIN,M10 x 90, Coiled

shaft retaining, inner, roll, 13 x 36 mm

2шт.

22

838-51690

LOCK PIN,M16 x 90, Slotted

shaft retaining, outer, roll, 16 x 90 mm

2шт.

23

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

24

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

8шт.

25

R45570

PLATE

guide, idler

4шт.

26

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD)

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Spring, used with Ref. 30, R58621

8шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Used with Ref 30, R58621

8шт.

29

106919A1

SPACER

wear plate, idler, above track frame

8шт.

30

R58621

SPRING

recoil, open coil, idler support, no longer available, order Refs. 34, 188866A1 spring, and 35, 413-618, bolt

8шт.

31

R33245

SPRING SEAT

8шт.

32

R37875

SHIM,0.813mm Thk

(.032"), Track adjuster

1шт.

33

127613A1

TUBE,60.3 mm OD, 334 mm Length

spacer

2шт.

34

188866A1

SHOCK ABSORBER

sealed rubber coated

8шт.

35

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Used with Ref. 34, 188866A1, Spring

8шт.
