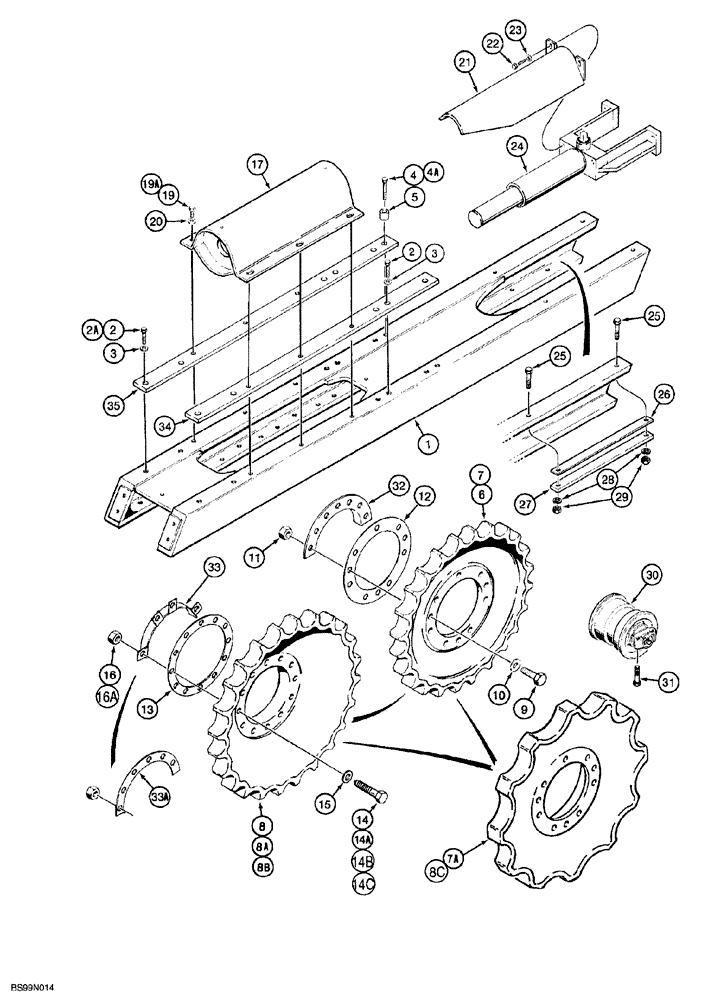

Запчасти Case 850G (5-02) - TRACK FRAMES AND RELATED PARTS (RIGHT-HAND TRACK SHOWN IN ILLUSTRATION) (04) - UNDERCARRIAGE

1

107006A1

FRAME

track

2шт.

2

113-2714

LOCK BOLT,Locking, 3/4"-10 x 2", G8

If used

12шт.

2a

113-2709

LOCK BOLT,Locking, 3/8"-10 x 2 1/2", G8

BOLT - hex. 3/4 NC x 2-1/2 inch, Models with extended life track

12шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

12шт.

4

113-2719

LOCK BOLT,Locking, 3/4"-10 x 3", G8

Forward leg of main frame to track frame, inner bolts, both sides, if used

8шт.

4a

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

Forward leg of main frame to track frame, inner bolts, both sides

8шт.

5

R30398

SPACER

forward leg of mam frame to track frame, inner bolts, both sides

8шт.

6

R56464

DRIVE SPROCKET

23 teeth, 10 bolt holes, 60 inch gauge, standard

2шт.

7

R56508

DRIVE SPROCKET

23 teeth, 10 bolt holes, relieved option, 60 inch gauge, not shown

2шт.

7a

188262A1

SPROCKET ASSY.

12 teeth, 60 inch gauge, models with extended life track

2шт.

8

R56535

DRIVE SPROCKET

23 teeth, 12 bolt holes, 70 inch gauge

2шт.

8a

188262A1

SPROCKET ASSY.

12 teeth, 10 bolt holes, 60 inch gauge ELT

2шт.

8b

254403A1

SPROCKET ASSY.

12 teeth, 12 bolt holes, 70 inch gauge ELT

2шт.

8c

254393A1

SPROCKET ASSY.

64 inch gauge, ELT models only

2шт.

9

R27954

BOLT

special, 3/4 NC x 3 inch, if used

14-20шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

14-20шт.

11

232-41112

NUT,3/4"-10, GC

20шт.

12

R46160

SHIM,.032" Thk

Sprocket

1шт.

13

R27241

SHIM,1/32" Thk

Sprocket

1шт.

14

R31277

BOLT

hex, special, 3/4 NC x 4-1/4 inch, grade 8, if used

24шт.

14a

R39270

BOLT

hex, special, 3/4 NC x 3-1/2 inch, grade 8, if used

14шт.

14b

R56343

BOLT special, 3/4 NC x 3-1/4 inch, if used

14шт.

14c

R56344

BOLT hex, special, 3/4 NC x 4 inch, grade 8, if used

24шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

24шт.

16

232-41112

NUT,3/4"-10, GC

If used

24шт.

16a

29-1012

NUT,3/4"-10, G8

If used

14-24шт.

17

127609A1

HOUSING

recoil

1шт.

19

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

If used

12шт.

19a

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch, models with extended life track

12шт.

20

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

flat, hardened, 21/32 x 1-5/16 x 5/32 inch

12шт.

21

126564A1

GUARD ASSY.

adjuster, 524 mm long

2шт.

22

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

24

REF

INSTRUCTION

ASSEMBLY, adjuster, track, for correct assembly and components see Figure 5-04

2шт.

25

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

26

CASR32491

SHIM

idler shim, below track frame

1шт.

27

R32465

BAR

PLATE wear, idler, lower

4шт.

28

492-11062

BEARING WASHER,5/8"

8шт.

29

425-1010

NUT,5/8"-11, G5

8шт.

30

R56593

SHIFTER ROLLER

ASSEMBLY track, parts list figure 5-07A

12шт.

31

113-2707

LOCK BOLT,Locking, 3/4"-10 x 3", G5

48шт.

32

117702A1

GUARD

standard dozer, seal, final drive

4шт.

33

R36703

GUARD

LGP dozer, final drive, no longer available, order 192443A1

4шт.

33a

192443A1

GUARD

LPG dozer, final drive

4шт.

34

116457A1

BAR

outer spacer, models with extended life track

2шт.

35

116456A1

BAR

inner spacer, models with extended life track

2шт.
